Description

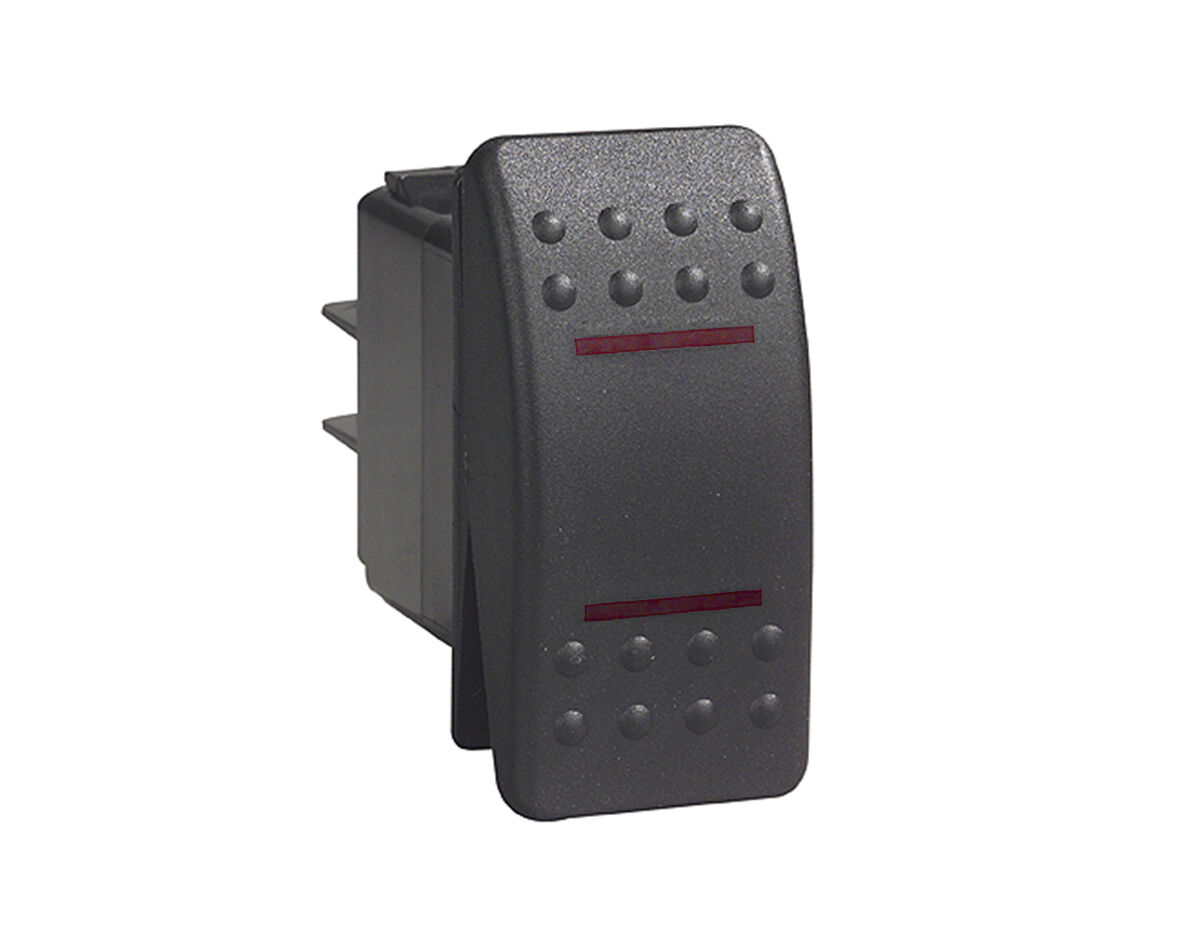

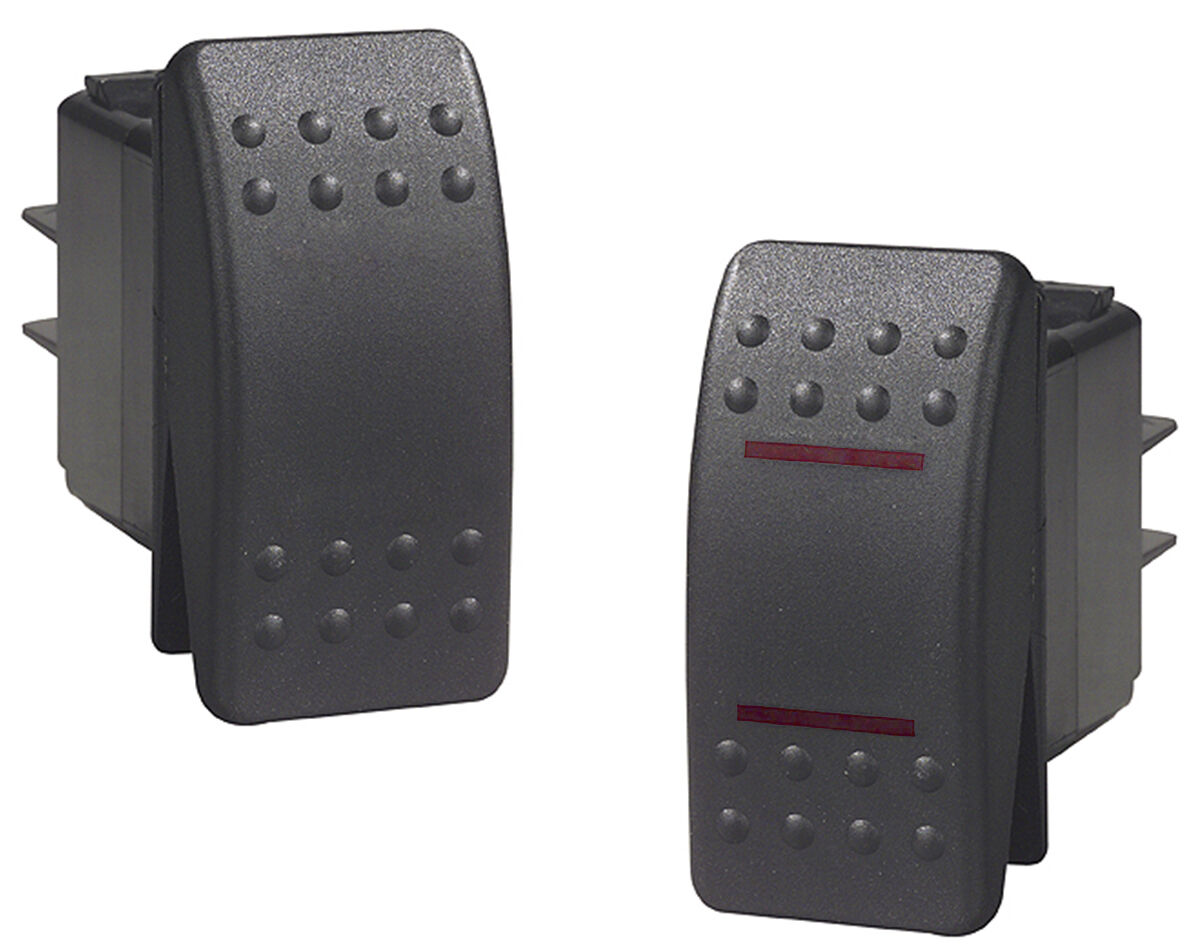

These waterproof rocker switches from Carling Industries feature snap-in panel mounting, an interchangeable actuator cover and quick-connect terminals with barriers.

The C2 range features the popular hard finished nylon actuator, while the indicator models have a red bar lens for incandescent illumination.

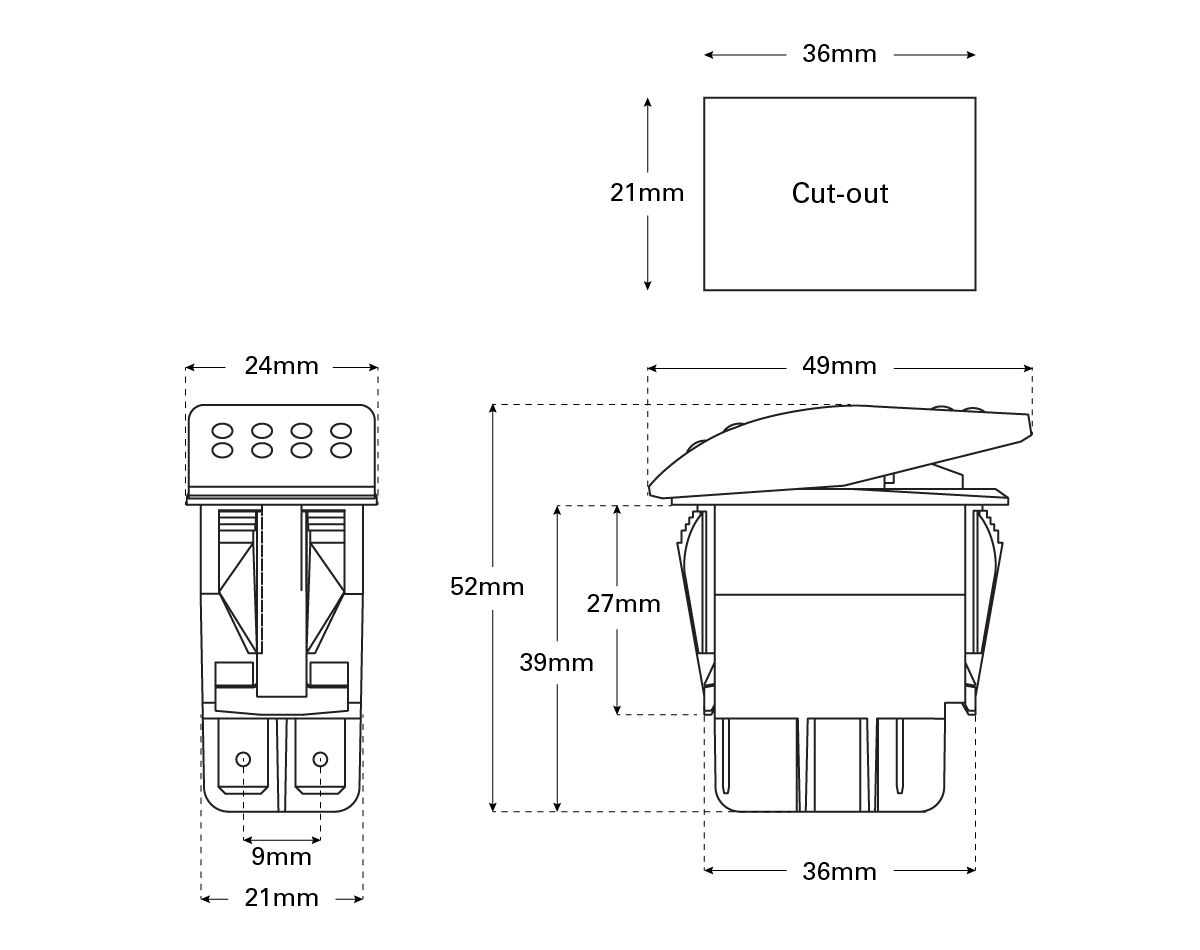

The multi-step mounting wings provide a secure fit for panel thicknesses of 0.8mm thru 6.35mm, in an industry standard 36x21mm mounting hole.

Features:

V-Series Contura II rocker switch
ON/ON actuation
Constructed of thermoplastic polycarbonate
Dual seal protection prevents ingress of water, dust and debris.
Interchangable actuator
Clean connections
Brass roller pin
Waterproof rating: IP66/IP68 (for front panel components)
Temperature rating: -40°C to +85°C
Switch circuit #4 (see diagram within images)

JPW SKU	Carling Code	Pole	Voltage	Amps	LED indication
JPW12607	V4DAS00BAZC	Single	12V	20A	None
JPW12606	V4DAD66BANC	Single	12V	20A	2
JPW12616	VDDAS00BAZC	Double	12V	20A	None

Also available in other switch configurations (see related products)
