Description

Water resistant curved switch panels with illuminated contura syle rocker switches and manual reset circuit breakers.

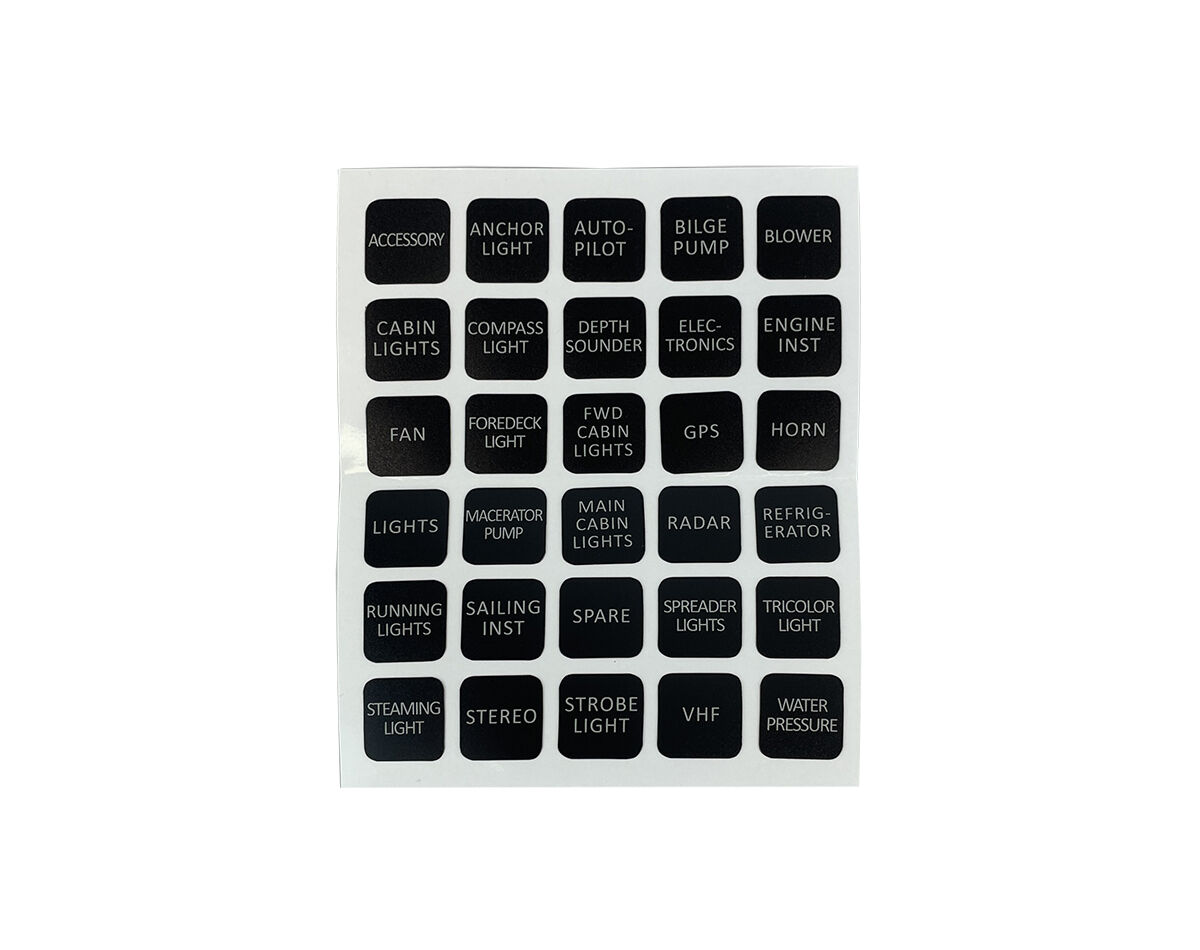

The compact, modern design allows for mounting vertically or horizontally and includes 30 sticker labels for easy indentification of switch function.

Splash resistant and supplied with a watertight mounting gasket, these panels are made from corrosion proof ABS plastic and feature reinforced corners to prevent cracking around the mounting holes.

Two versions available:

JPW12974: 6 Gang

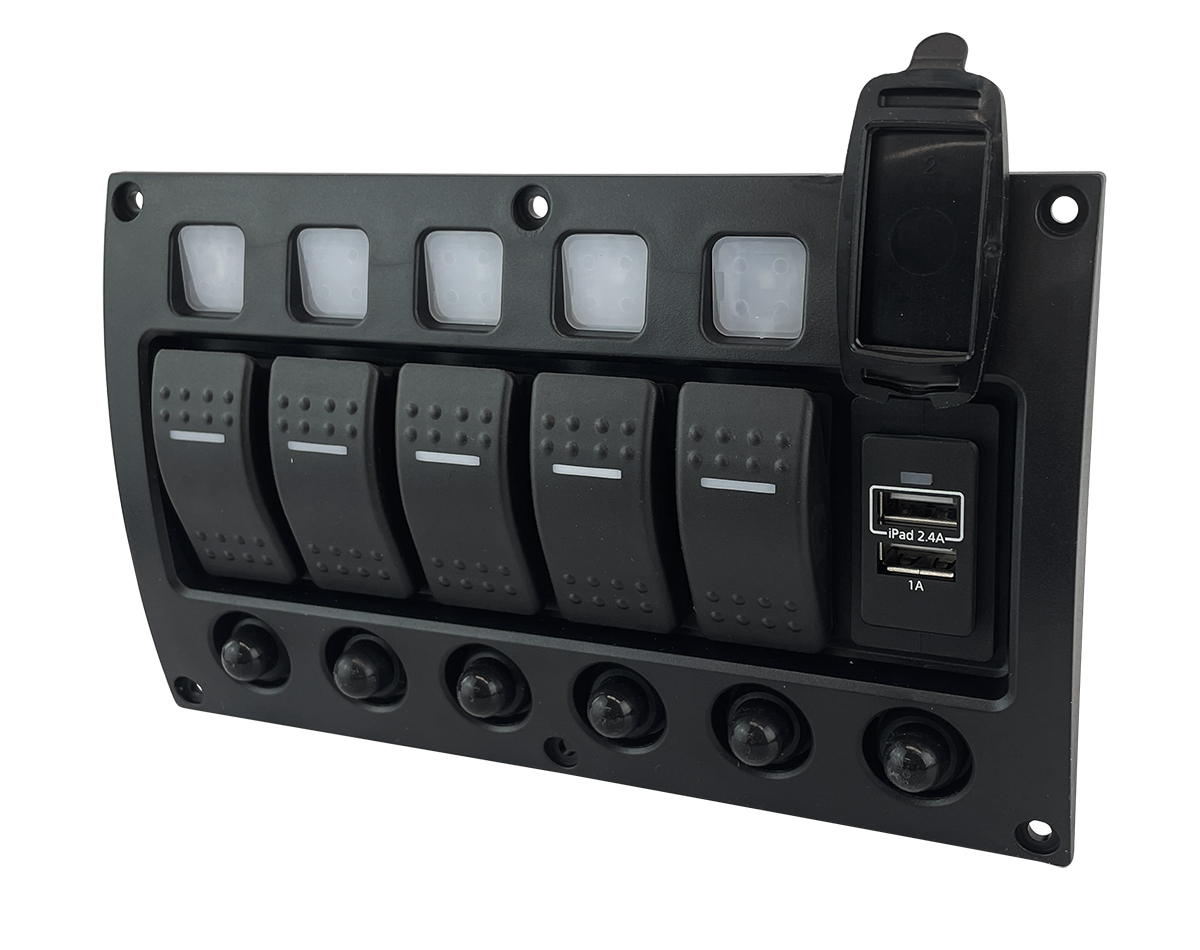

JPW12975: 5 Gang with dual USB chargers

Features:

Compact, modern design
Mount vertically or horizontally
Splash resistant (IP66 rating)
Made from corrosion proof ABS plastic with reinforced corners
Push-to-reset circuit breakers with rubber boots

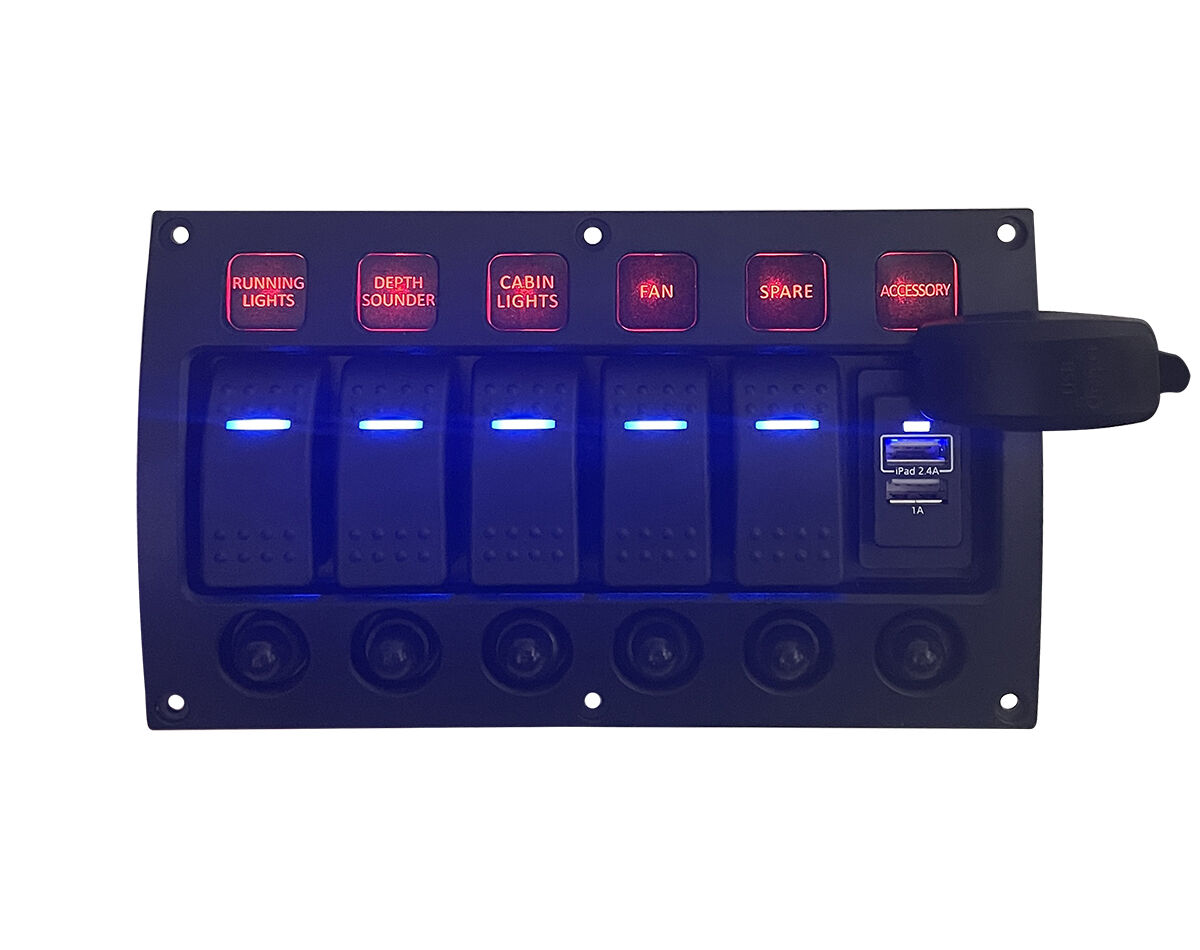

Illuminated switches glow blue when activated
Dual port USB charger compatible with iPad, iPhone and Android devices
Replaceable ON/OFF rocker switches
Switches rated to 20A
Easy to read labels
Supplied with watertight mounting gasket, mounting hardware and template

Material:	Curved shaped ABS plastic
Circuit Protection:	6-20A push reset circuit breakers
Voltage:	12/24V
Maximum Cumulative Amps:	45A

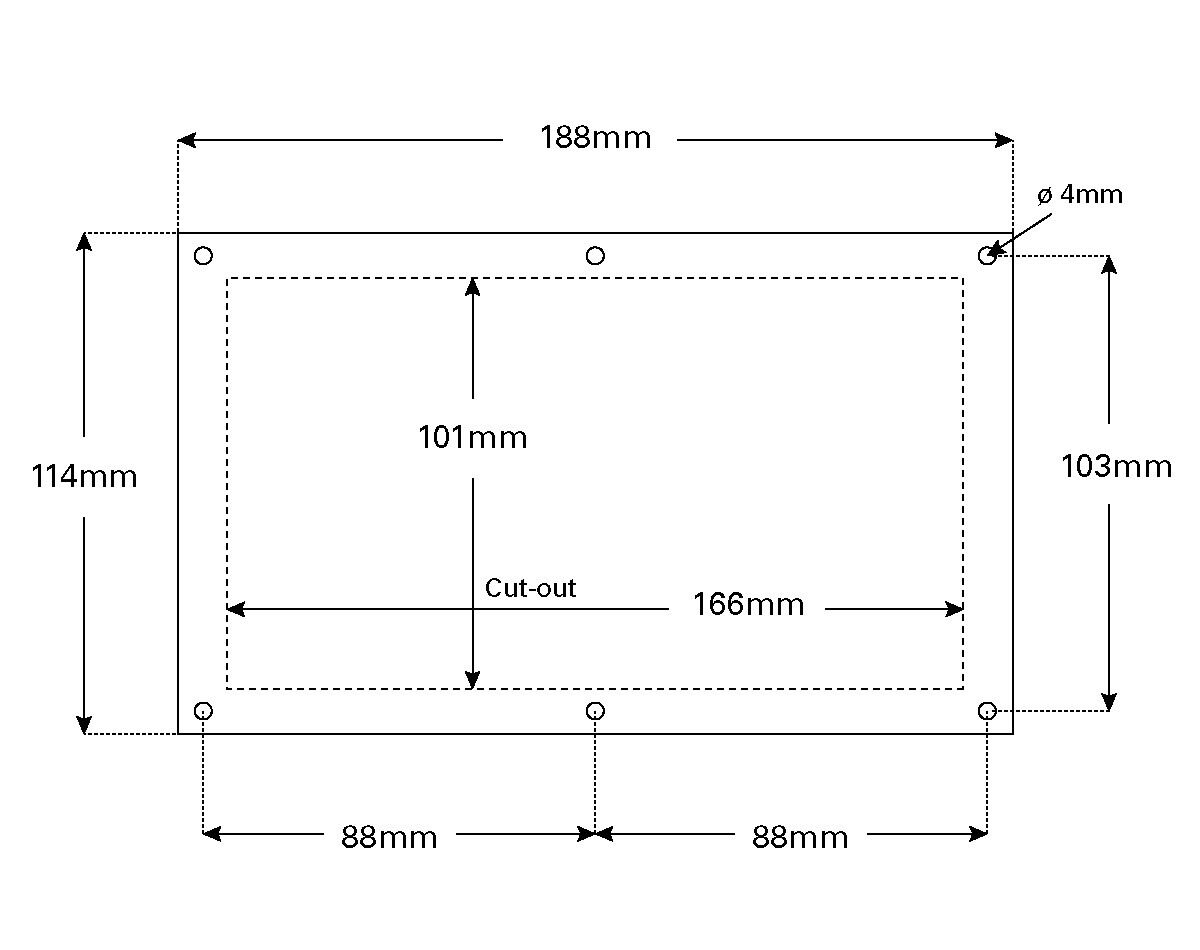

Dimensions	114 x 188mm
Cutout:	101 x 166mm
Water Protection Rating:	IP66 (Dust proof and protected against heavy seas, or powerful jets of water)
