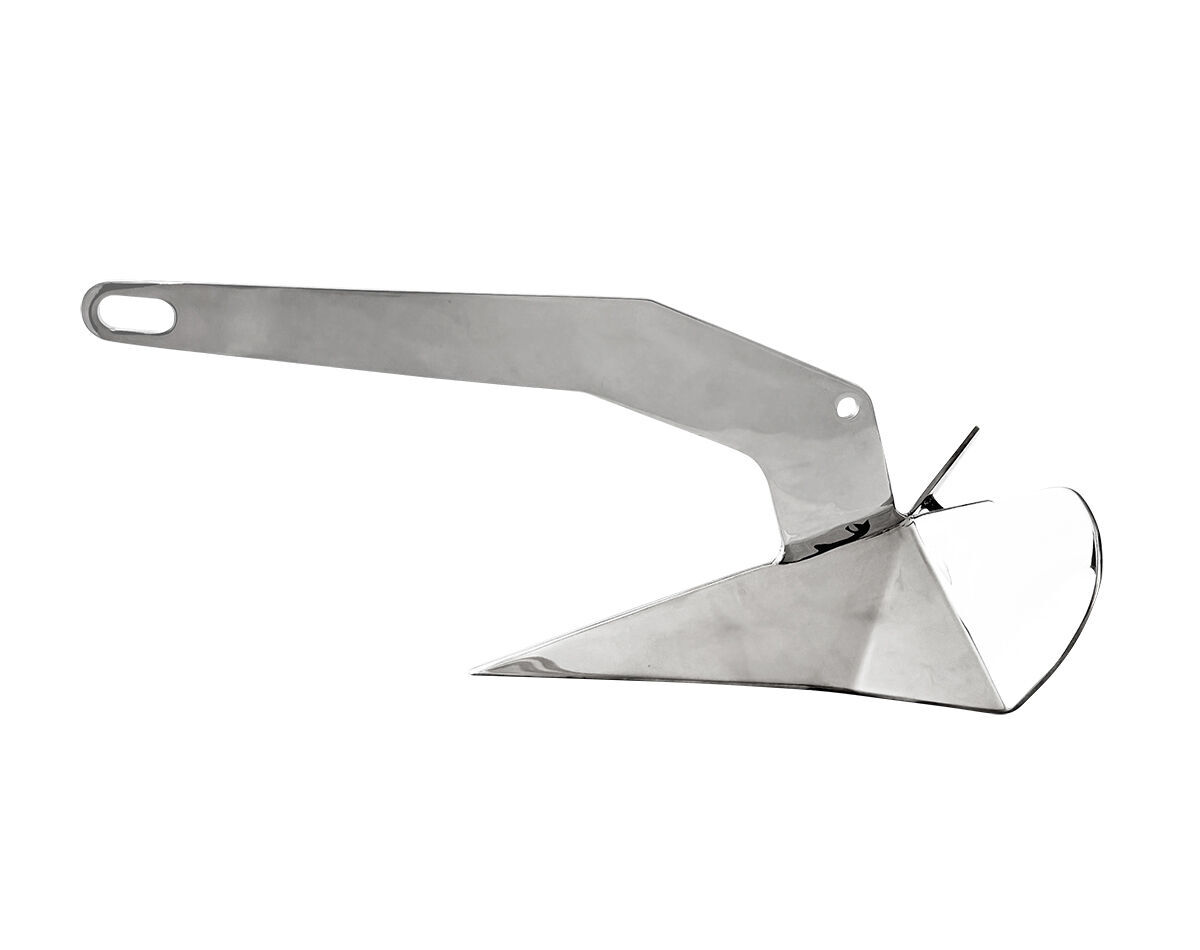

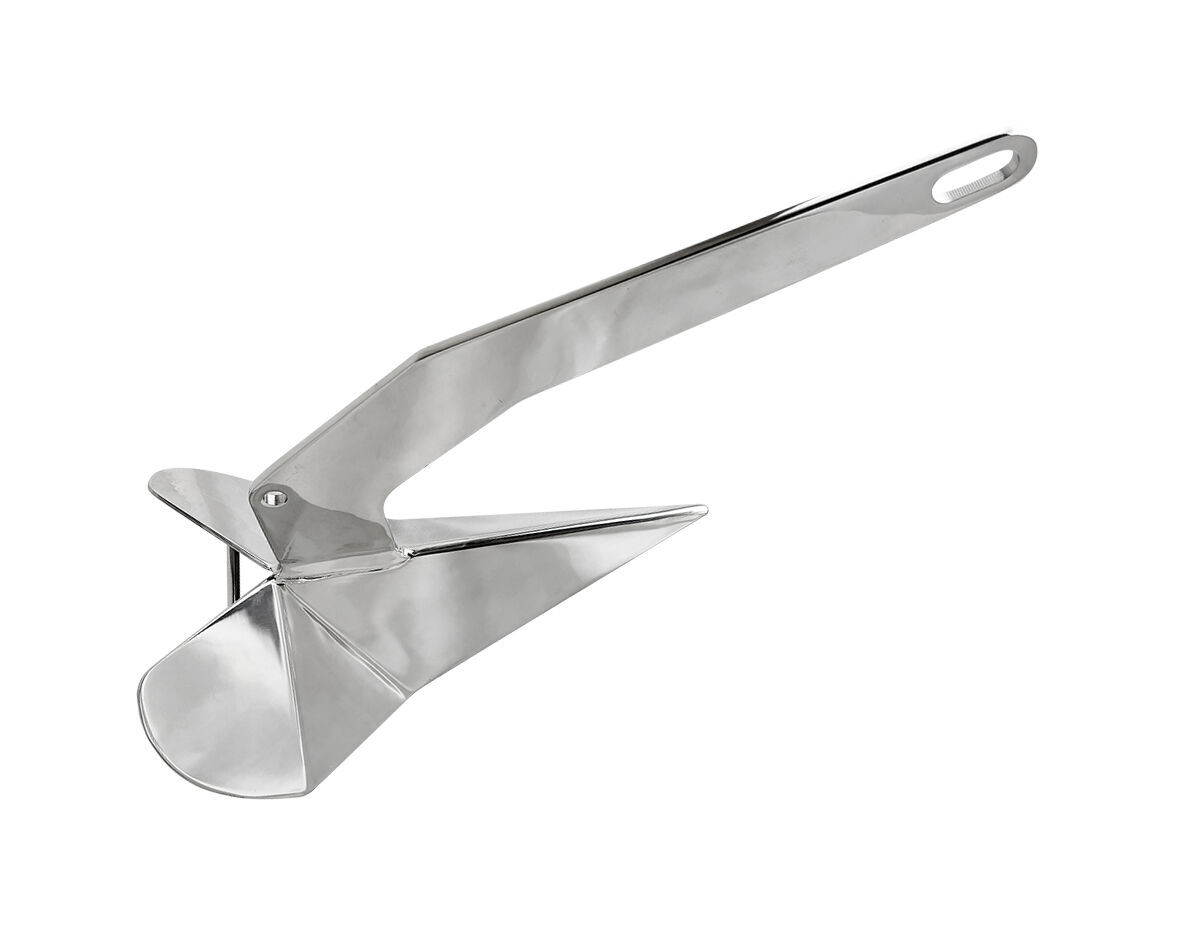

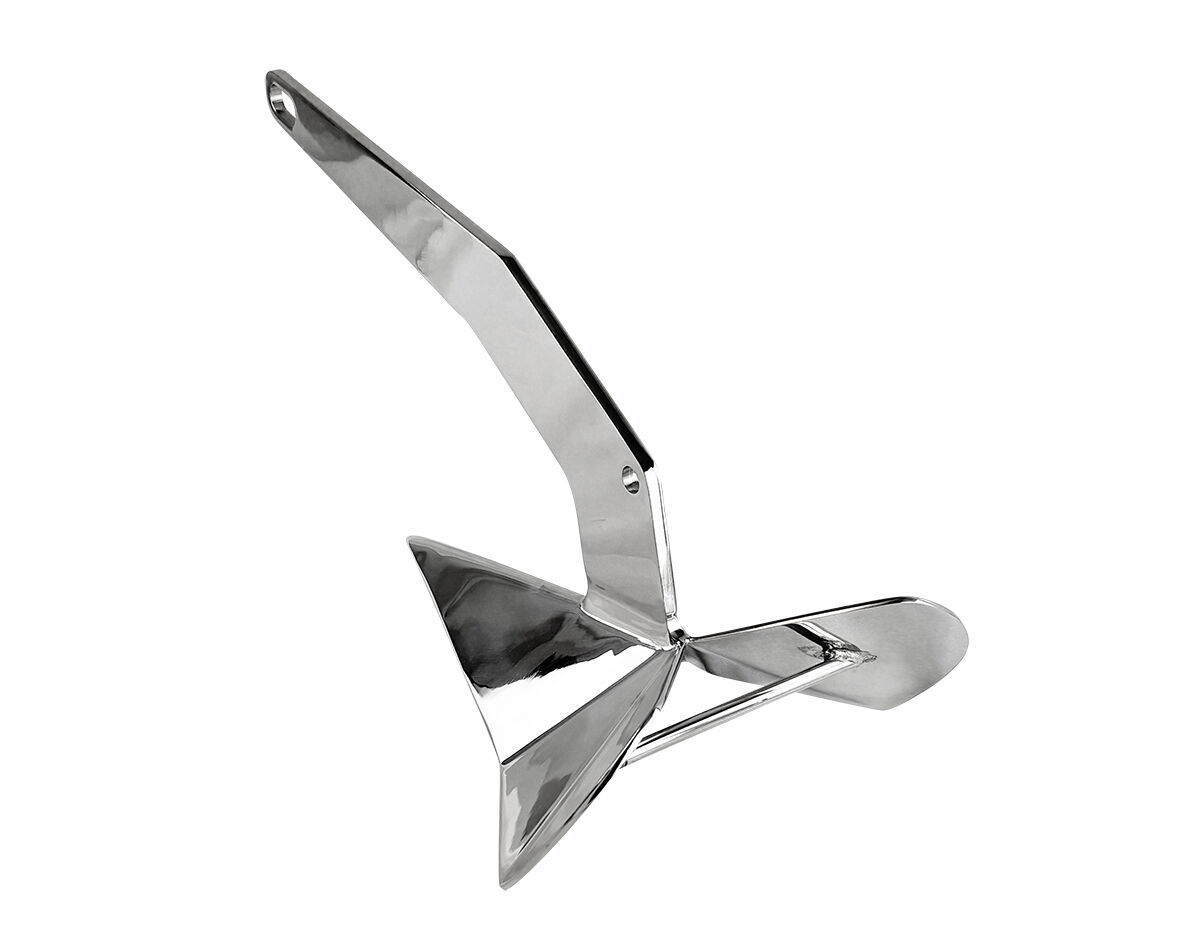

Fixed Head Power Anchor with Wings Stainless Steel

Its unique shank profile and ballasted tip enables this anchor to be self-launching, and the low centre of gravity and self-righting geometry ensure that it will set immediately.

The fluke has a large surface area and flares outward at the rear to provide greater resistance to dragging and twisting forces.

Features:

Based on a similar design as the "Delta" anchor
High-grade stainless steel
Self-launching

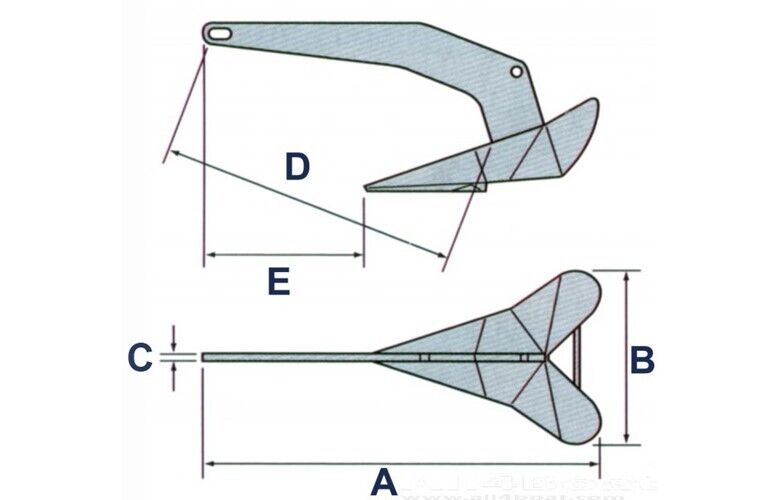

JPW SKU	Anchor Size		A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Suggested Boat Size (m)
JPW96156	13.2lb	6kg	610	260	10	440	250	7-8
JPW96157	22lb	10kg	700	310	15	500	310	8-10
JPW96158	35.2lb	16kg	820	350	15	590	330	10-14
JPW96159	44lb	20kg	880	390	16	665	360	15-17
JPW96160	55lb	25kg	945	415	16	715	390	18-20
