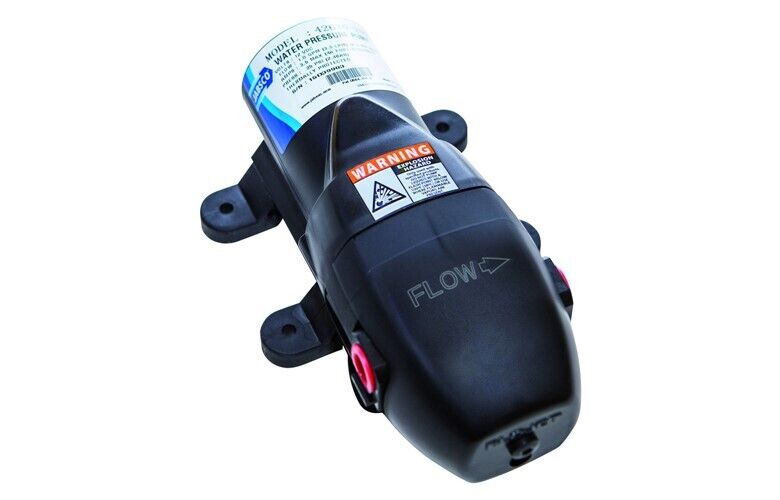

Jabsco design with an IP rated cover and quick-fit ports builds on the easy installation process and follows 50 years of innovative Jabsco design.
Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.
Write A ReviewJabsco design with an IP rated cover and quick-fit ports builds on the easy installation process and follows 50 years of innovative Jabsco design. With on-demand (pressure switch shut-off) and made from robust materials, this kit is suitable for handling a broad range of applications.
The Jabsco diaphragm pumps offer dependable dry-running capabilities, thereby extending the life of the pump.
This kit comes packaged with various port fittings, accomodating a flow rate of up to 1 GPM (3.8 LPM) and operating pressures of up to 35 PSI (2.4 bar).
Features a built-in thermal protector and boasts a low-amp draw, making it ideal for battery powered applications.
Pump must be installed in a dry, ventilated area.
Product features:
| Pump Design | Reciprocating diaphragm |
|---|---|
| Max. Flow Rate | 1.0 GPM (3.78 LPM) at open flow |
| Duty Cycle | Intermittent |
| Housing Material | Polypropylene |
| Diaphragm Elastomer | Santoprene |
| Check Valve Materials | EPDM |
| Check Valve Spring | 316 stainless steel |
| Port Type | Quick disconnect |
| Pressure Switch Setting | 35 PSI (2.4 bar) off 25 PSI (1.7 bar) on |
| Self-Priming | Up to 1.8m (6ft) |
| Liquid Temperature | 43ºC (110ºF) max. 4.5ºC (40ºF) min. |
| Motor Type | Permanent magnet motor |
| Motor Voltage | 12v DC |
| Current Draw | 2.5 amps @ 25 PSI (1.7 bar) |
| Fuse Size | 4 amps |
| Certifications | CSA, CE |
| SKU | JPW-J20-094 |
| Brand | Jabsco |
| Shipping Weight | 0.7700kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.250m |
| Shipping Length | 0.160m |
