Narva LED 4-Way Switch Panel with Fuse or Circuit Breaker Protection

Ideal for boat, mobile home or caravan applications, these switch panels are pre-wired and feature concealed electrical protection. Choose from either blade fuse or manual reset circuit breaker protection, both easily serviced via the removable cover.

Each panel can be mounted horizontally or vertically to best suit the application and are supplied with a sticker set with popular RV and Marine symbols.

These LED Rocker switch panels are suitable for either 12 or 24 volt operation.

Fuse Protection panel features:

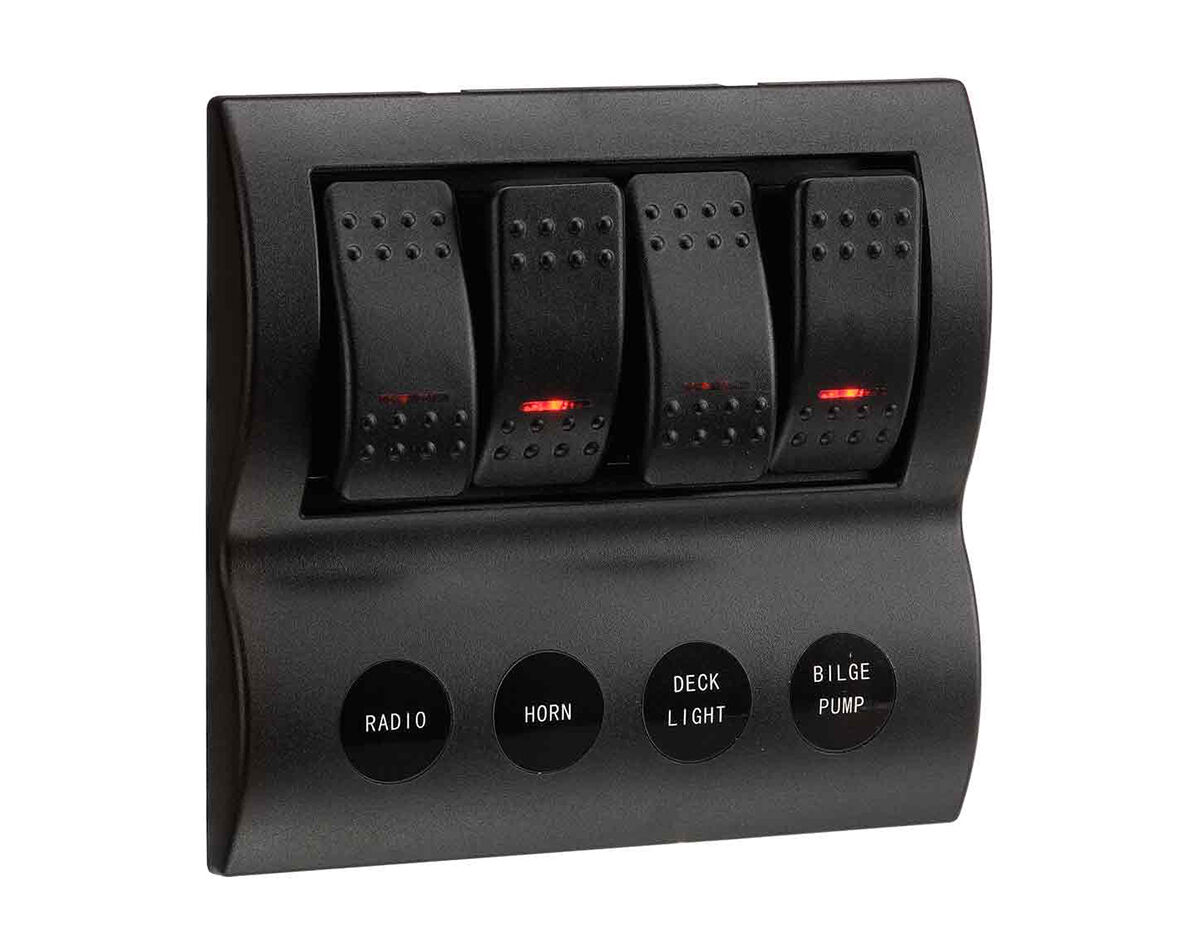

4x On/Off switches with red 'On' illumination
46 piece symbol set for RV and marine applications

Circuit Breaker panel features:

3x On/Off switches and 1x Momentary (On) switch
Circuit Breakers: 2 x 10A, 2 x 15A

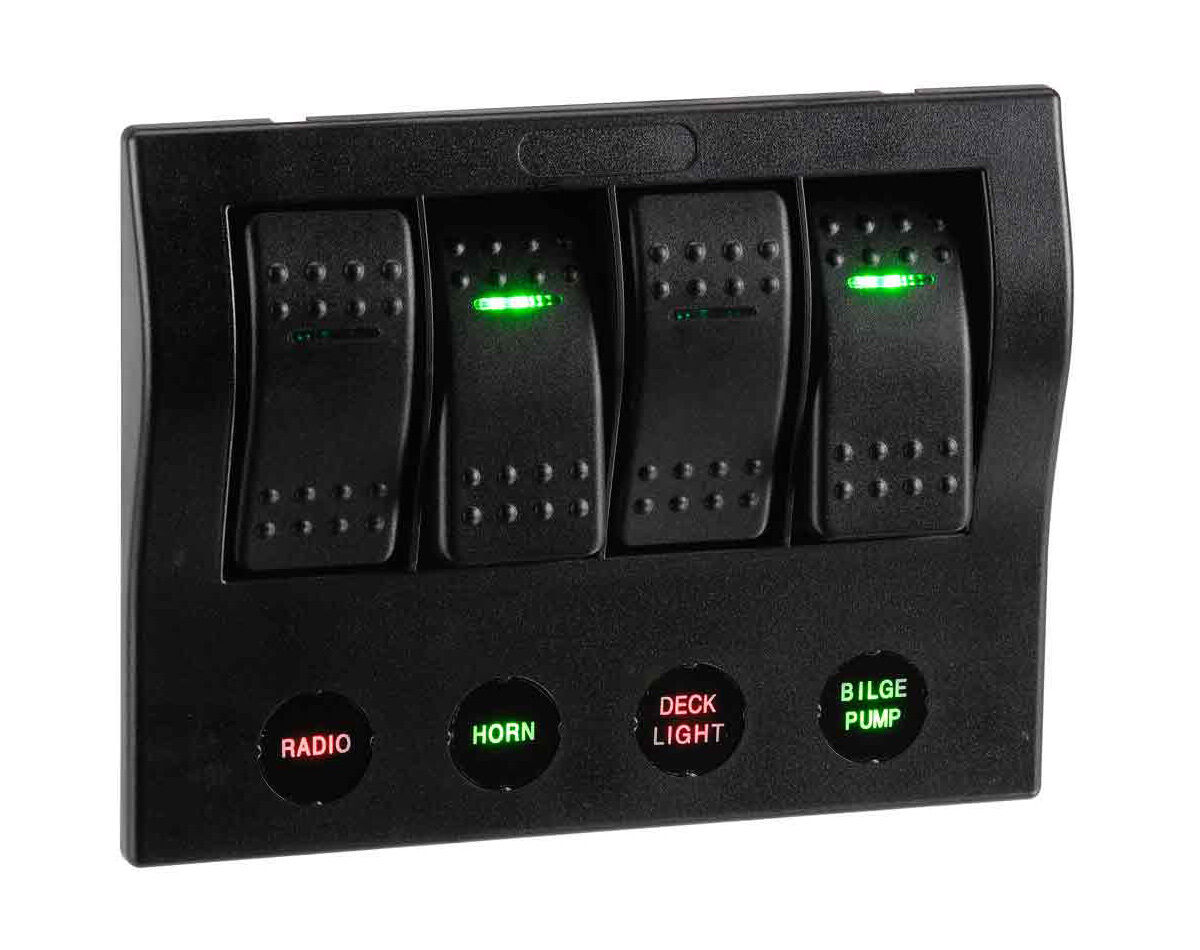

Symbols and switches illuminate GREEN when 'ON'
Symbols illuminates RED when 'OFF'
60 piece symbol set for RV and marine applications
Fuse and circuit breaker concealed under face cover

Description	Amperage Rating	Mounting Opening	Overall Size
Fuse Protection	20A @ 12V / 10A @ 24V	105 x 93mm	130 x 120mm
Circuit Breaker Protection	20A @ 12V / 10A @ 24V	108 x 83mm	130 x 100mm
