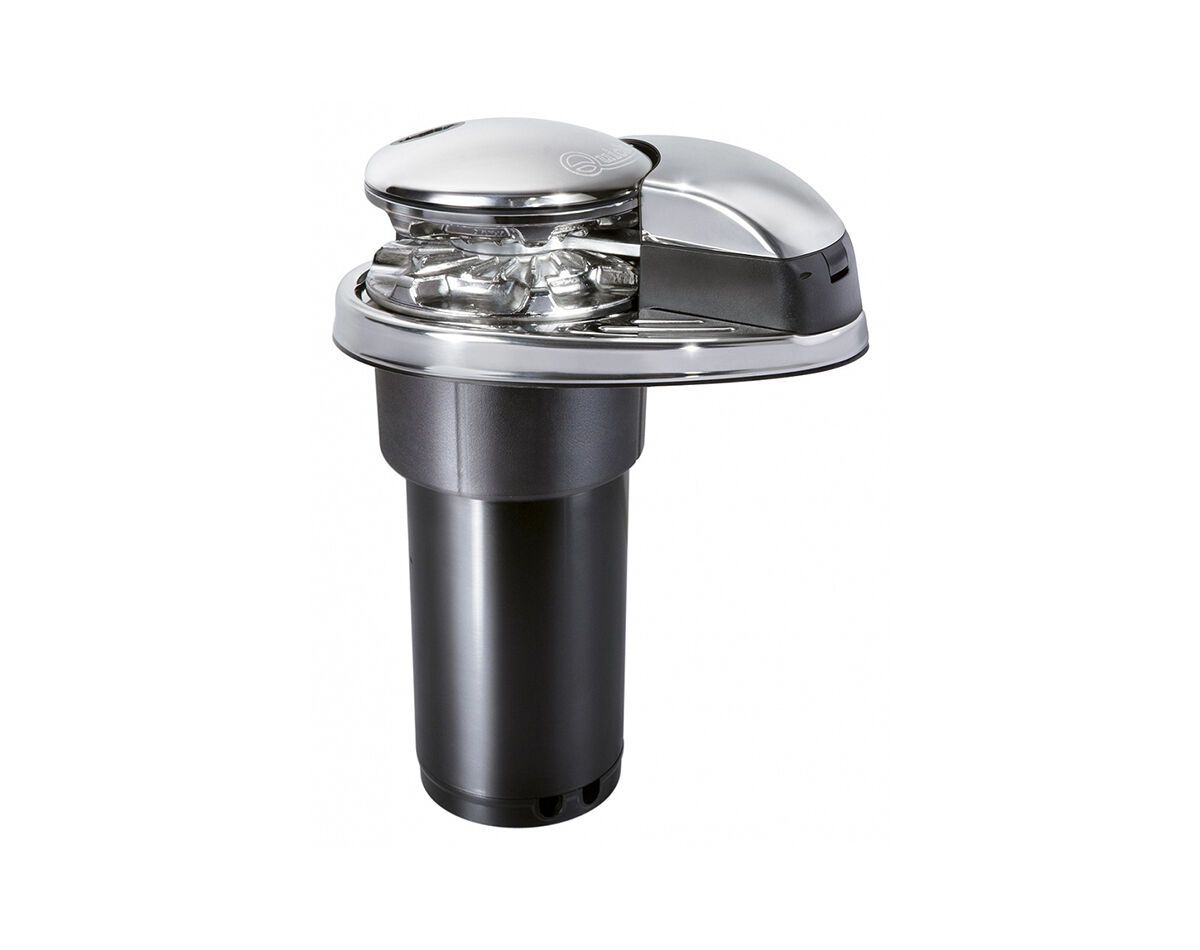

Quick DP2E Series Vertical Windlass

Model	DP2E 500	DP2E 800
Watts	500w	800w
Volts	12v	12v or (24v)
Amps	60A	84A (53A 24v)
Chain Gypsy Size (mm)	6 or 8mm	6 or 8mm
Rope Size	12mm	12mm
Max. Pull	620kg	820kg
Max. Working Load	200kg	290kg
Max. Chain Speed	22.9m/min	22.5m/min
Drive Shaft	Vertical	Vertical
Capstan Option	Yes	Yes
Chain/Rope Gypsy	Yes	Yes
Deck Thickness	20 - 40mm	20 - 40mm
