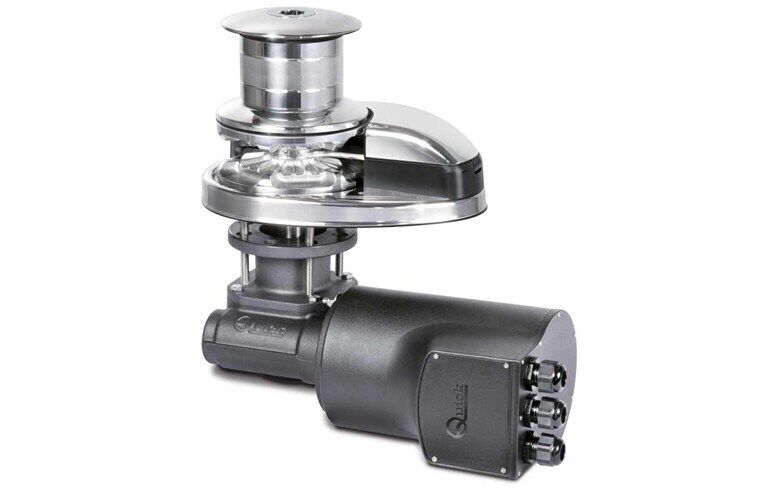

Quick DP3 Series 700w Vertical Windlass

AISI 316 grade stainless steel base with and without drum integrated sensor and magnet for chain counter. Manual Free-Fall system inspection cover IP67 watertight motor anodised aluminium gearbox.

Features:

Vertical windlasses
AISI 316 grade stainless steel base
With and without drum
Manual Free-Fall system
Supplied with pressure lever inspection lid
IP67 watertight motors
Anodised aluminium gearbox
3 year warranty from the date of sale

Standard Inclusions:

Clutch Release and Manual Lift Handle
Isolator/Circuit Breaker Panel
Reversing Solenoid

Optional Additions:

Remote Up/Down Panel Switch
Foot Switches: Up-Down for the deck
Digital Chain Counters
Hand Held Remote Controls
Wireless Remote Controls

Note: Capstan not included, but available upon request.

Model	DP3 700
Watts	700w
Volts	12 (24)
Amps	90A
Chain Size (mm)	8 (10)
Rope Size	12/16mm
Max. Pull	850kg
Max. Working Load	250kg
Max. Chain Speed	27.4m/min
Drive Shaft	Vertical
Capstan Option	Yes
Chain/Rope Gypsy	Yes
Deck Thickness	25 - 50mm
