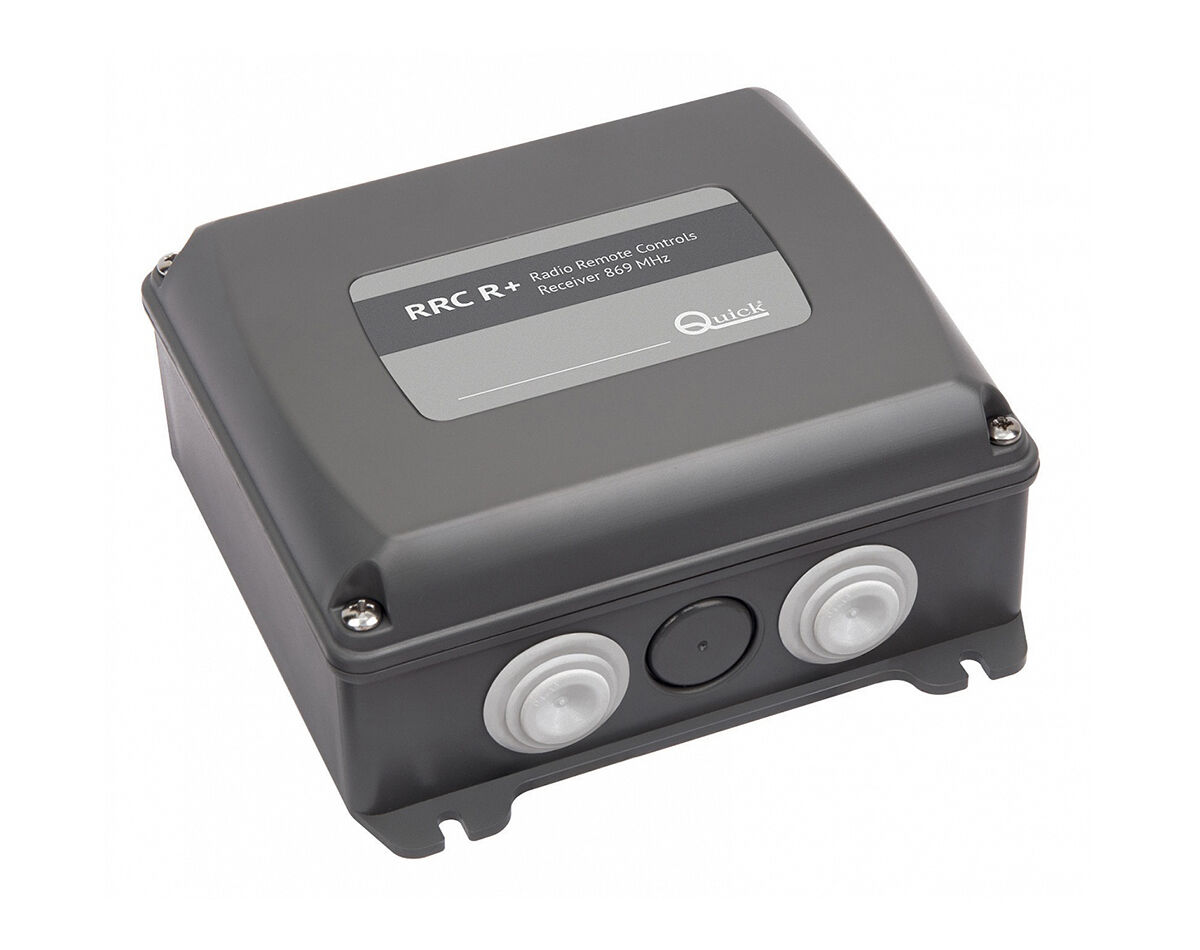

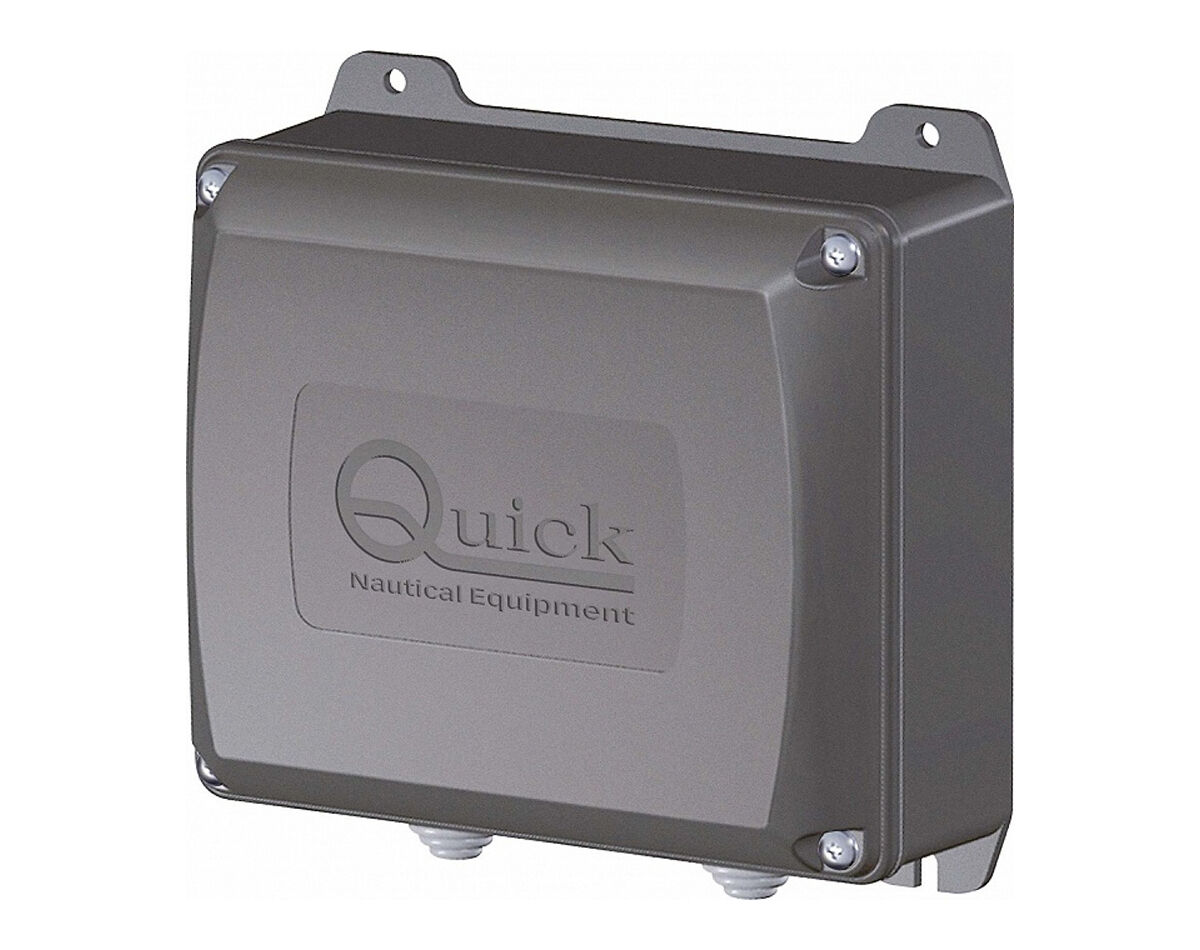

Quick Radio Receivers (RRC Plus Models)

The RRC radio control receiver, when paired with an RRC radio transmitter, is designed for controlling devices or accessories such as anchor winches and bow/stern thrusters.

Features seven-segement display and LED indication of the system operating status, errors and problems.

Can be programmed to receive signals from multiple transmitters allowing for multiple applications per unit.

These latest models come with a higher frequency (869.8 mhz) and will only operate with Quick radio transmitters with the same frequency (sold separately - see related products).

Features:

Full supply range: 10.5 - 31VDC
Microcontroller-operated functions
FSK modulation and carrier freqency 869.8 Mhz
Operating temperature: -15°C to +70°C
LED indication & 7-segment display
Protection against polarity inversion
Protection against the discharge of the battery
50 transmitters can be stored
Translation mode to activate more receivers, installed in different spots, by means of one transmitter
Programmable digital filter
Two functions can be activated at the same time
Possible connection to an external antenna

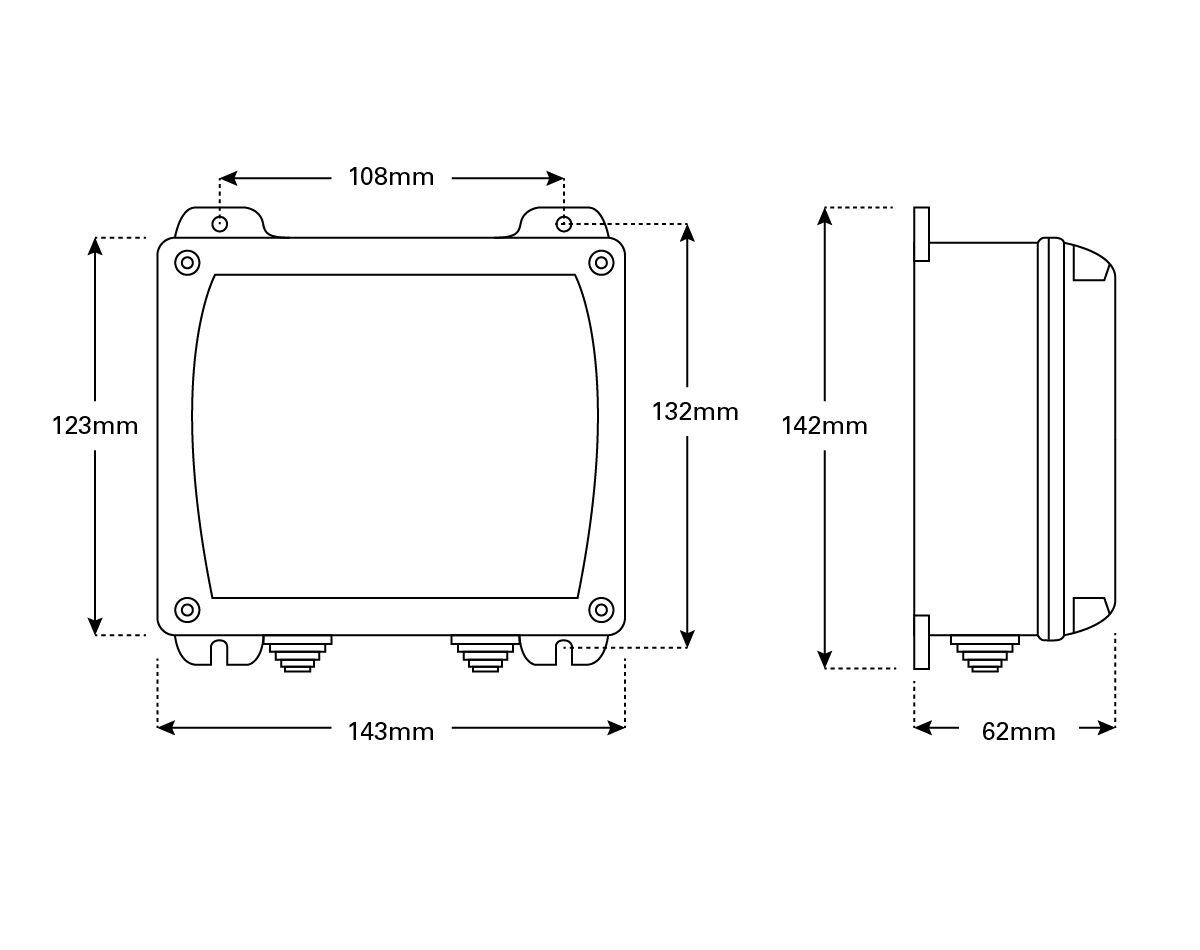

Dimensions: 143 x 142 x 62mm
Must be installed vertically (mounting hardware not included)

SKU	Model	Channels
QFRRRCR02P000A00	RRC R02	2
QFRRRCR04P000A00	RRC R04	4
QFRRRCR06P000A00	RRC R06	6
QFRRRCR08P000A00	RRC R08	8
QFRRRCR10P000A00	RRC R10	10
QFRRRCR12P000A00	RRC R12	12
