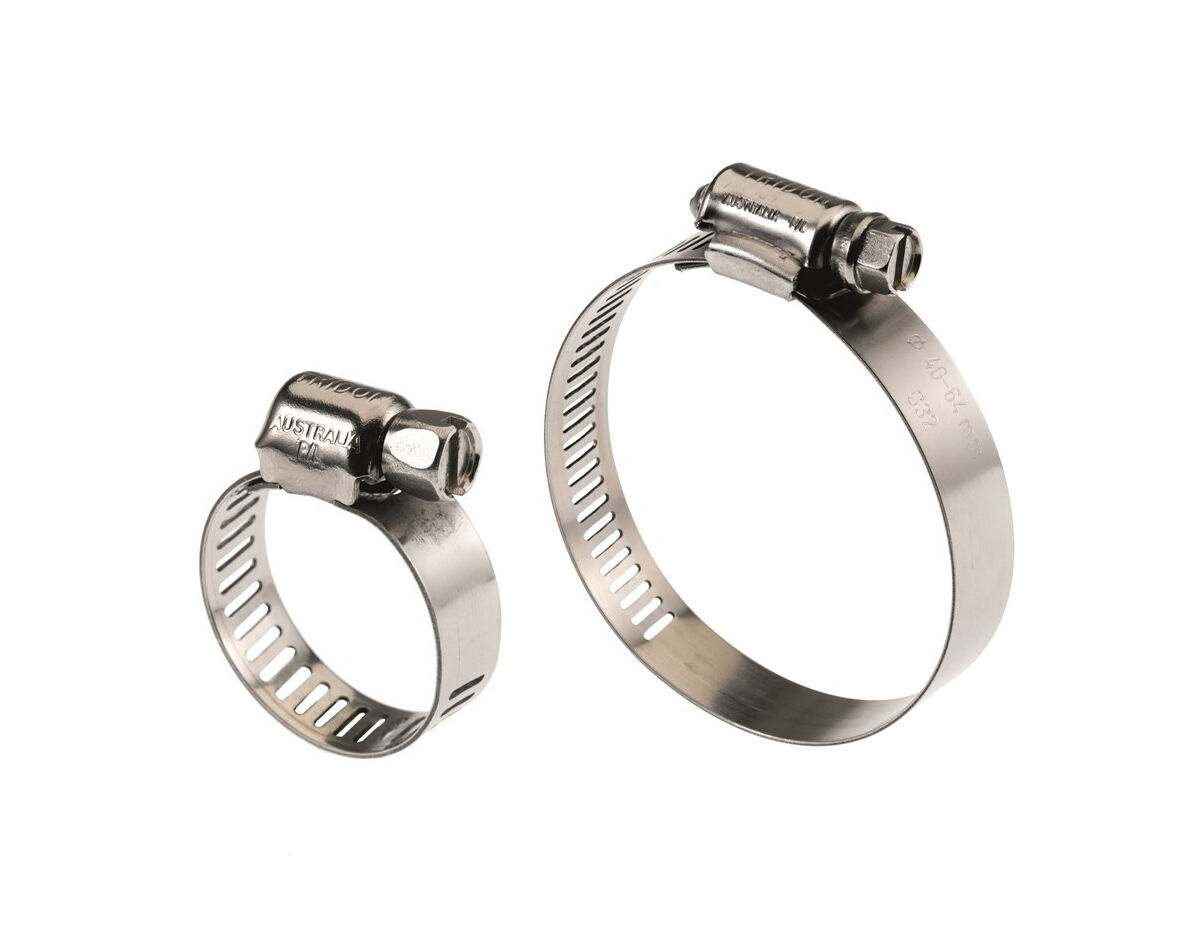

Manufactured in Australia to SAE J1508 standards, the Tridon 316 stainless perforated band clamp range provides superior design and proven reliability.
The stainless steel perforated band clamp design delivers low free torque for ease of installation and high strength for reliable high quality sealing.
Ideal for use in the marine industry were harsh operating conditions superior corrosion protection is required.
Features:
For marine, industrial, automotive, agricultural, chemical and general purpose use
All stainless steel for corrosion protection
Built to SAE J1508 standard
Hexagonal head with screwdriver slot
Low free torque for ease of installation
Used in OE applications
Flexible band for superior sealing, conforms to hose
High strength for reliable sealing
Made in Australia
SKU
Clamp Size Range (mm)
Band Width (mm)
Manufacture Part No.
Clamp Type

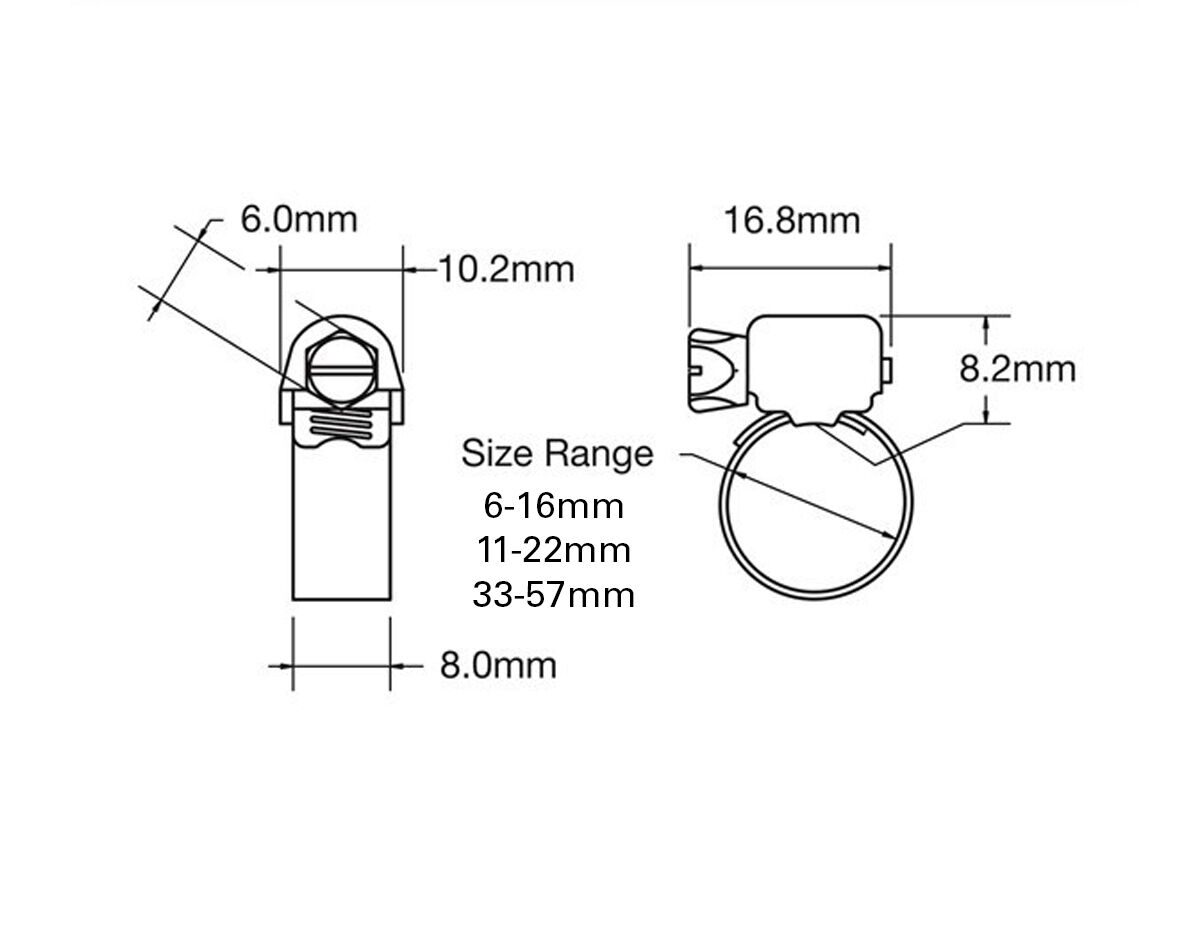

JPW2000
6 - 16
8
MAH004P
Mini
JPW2001
11 - 22
8
MAH006P
Mini
JPW2014
33 - 57
8
MAH028P
Mini

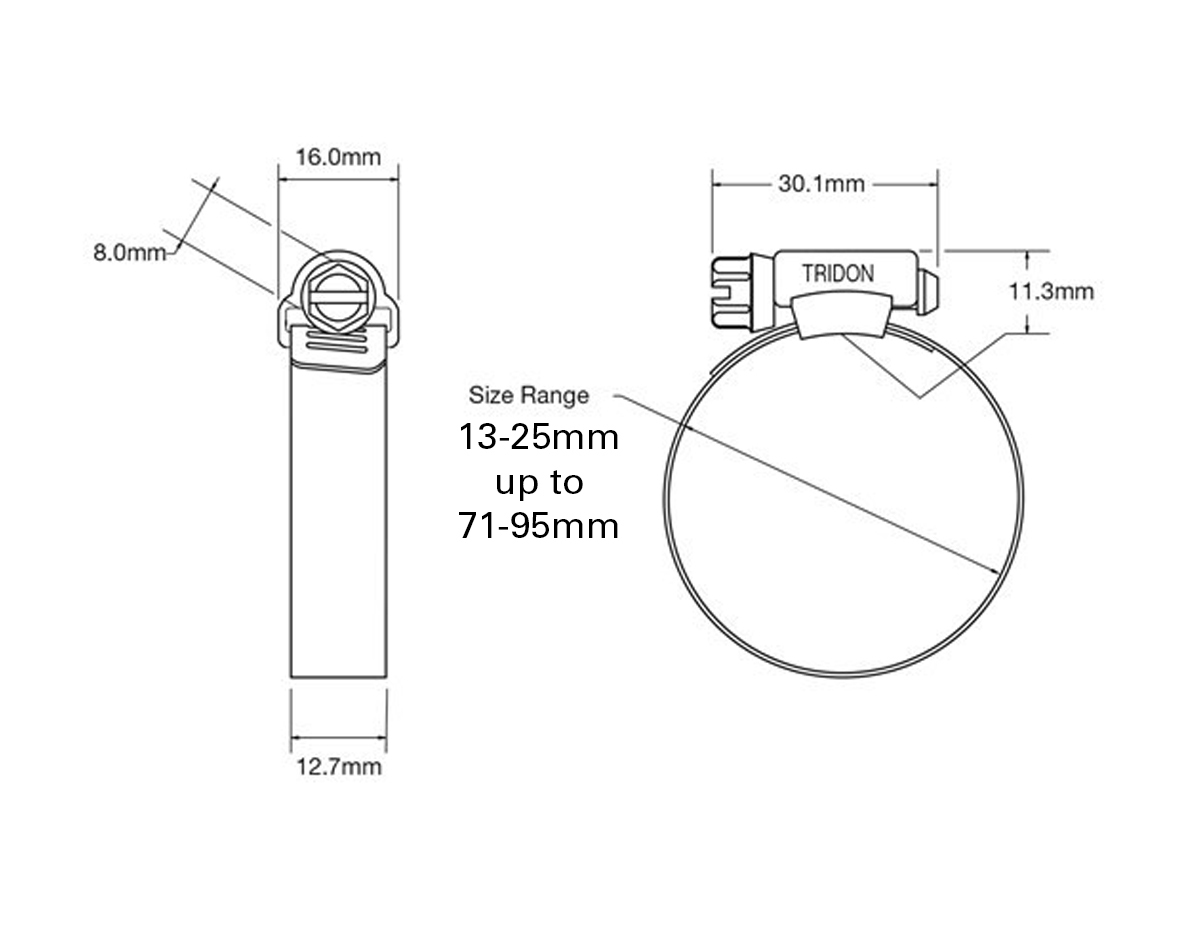

JPW2002
13 - 25
12.7
HAS008P
Standard
JPW2003
14 - 27
12.7
HAS010P
Standard
JPW2008
18 - 32
12.7
HAS012P
Standard
JPW2009
21 - 38
12.7
HAS016P
Standard
JPW2004
21 - 44
12.7
HAS020P
Standard
JPW2005
27 - 51
12.7
HAS024P
Standard
JPW2006
33 - 57
12.7
HAS028P
Standard
JPW2007
40 - 64
12.7
HAS032P
Standard
JPW2013
71 - 95
12.7
HAS052P
Standard
Enquiry Form
Tridon Hose Clamps Perforated Band 316 Stainless Steel (Box of 10)
