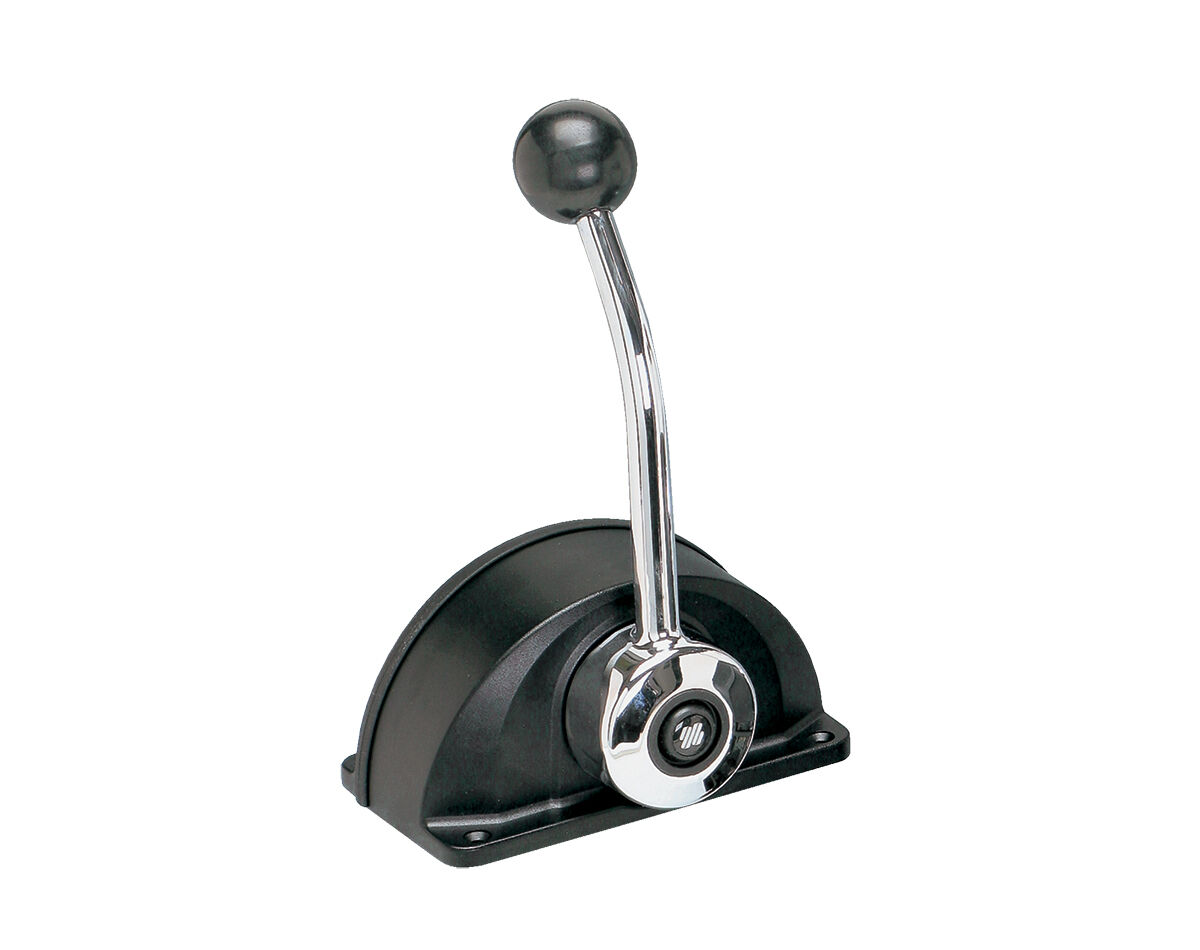

Ultraflex B301 Series Top Mount Engine Controls Single Lever

Single lever low profile design
Easy & safe shifting preventing accidental gear engagement unless engine is idling
Push in button disengages shift for warmup
Optional neutral safetly switch preventing in-gear starting (x12 - 83670)
Black knob
Exceeds safety standard EN11547 with X12 safety switch installed

For use with all Ultraflex control cables except C4:

C14 and MACH™14 cables require no kit.
C2, C8 and MACH™Zero cables the connection kit K59 (U40144) is included.
C5, C16 and MACH™5 cables require K60 (U40145) kit - sold separately.
C36 and MACH™36 cables require K62 (40157J) kit - sold separately.

Lever:	Single
Lever Control:	Dual action
Assembly:	Top Mount
Application:	Inboard
Material:	Marine aluminium

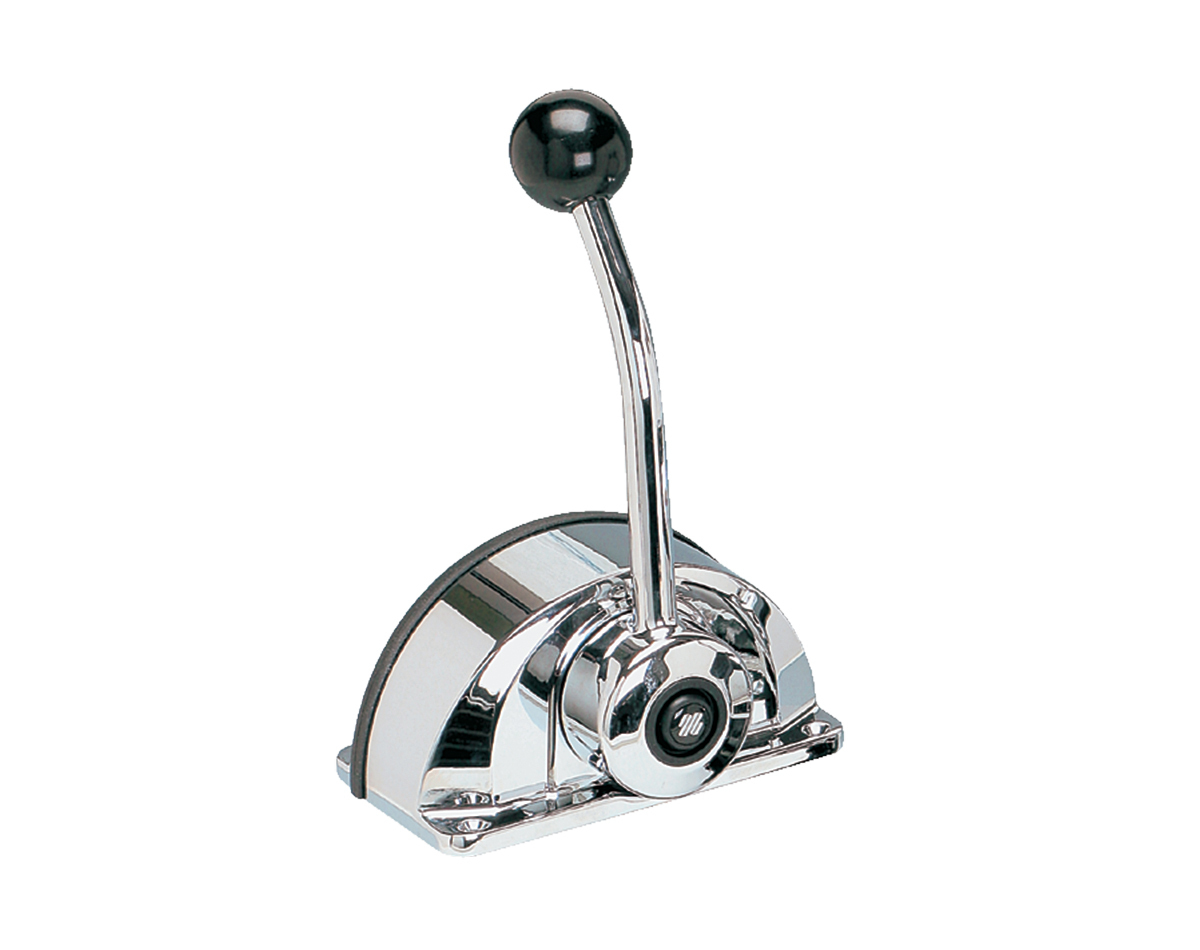

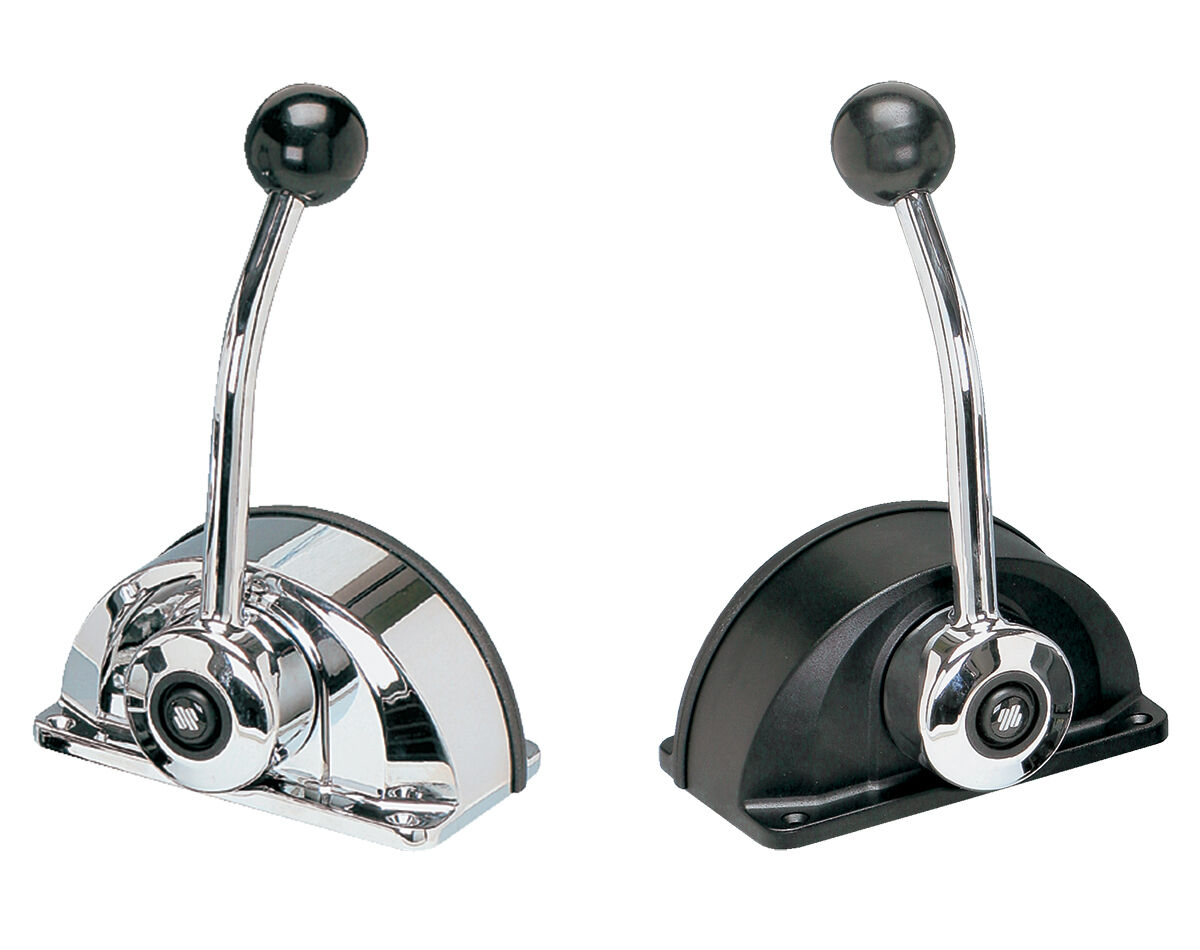

Colours:	• Chromed housing & lever • Black powder coat finish housing & chromed lever
Version:	Fully mechanical
Adjustable friction:	Provided
Push in button (warm up):	Provided
Positive lock-in neutral:	Not provided
Power trim switch:	Not provided
X12 Neutral Safety Switch:	Optional (sold seperately)
EN ISO 11547	Yes, when safety switch is installed
Control Cables:	C14, Mach14
Control Cables: (require connection kit)	C2, C8, MachZero, C5, C16, Mach5, C36, Mach36, C22
