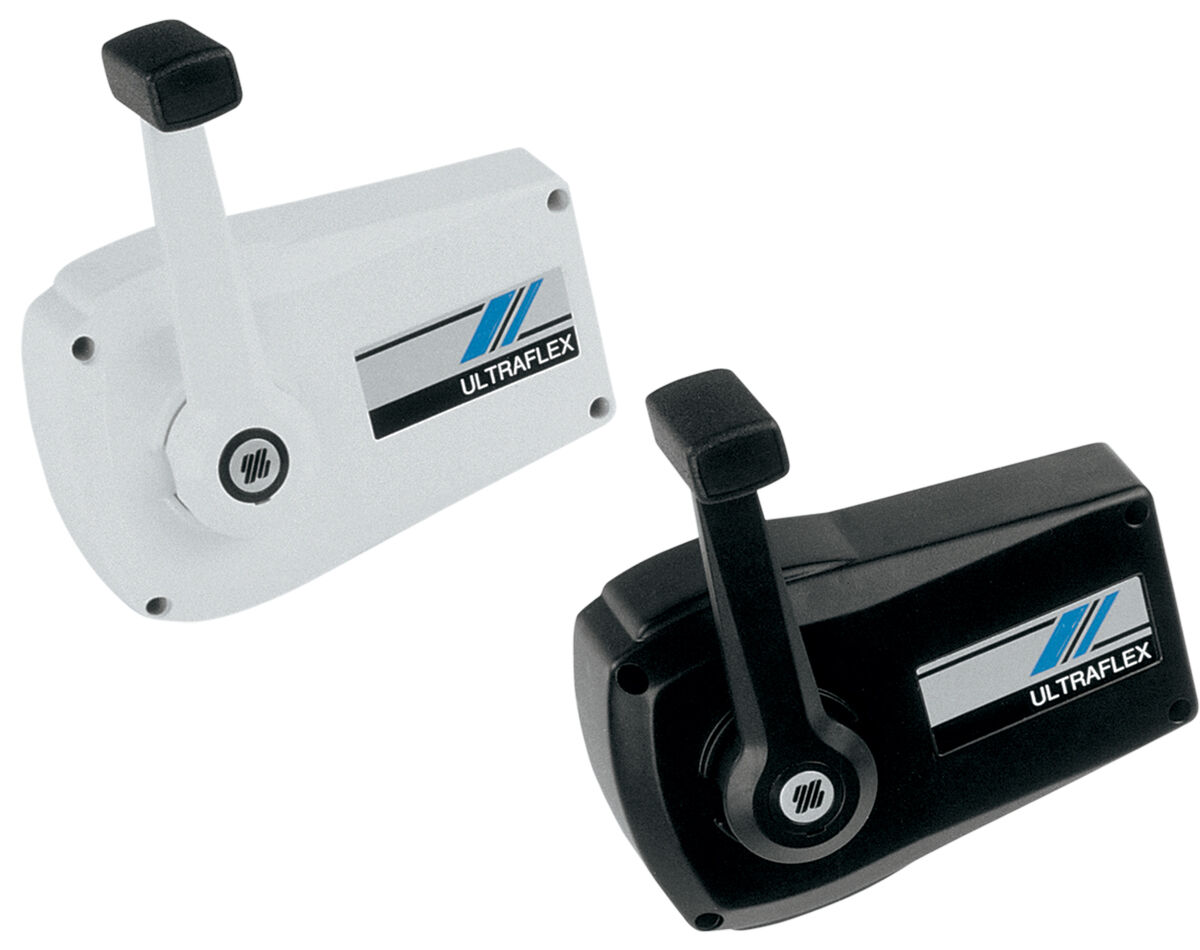

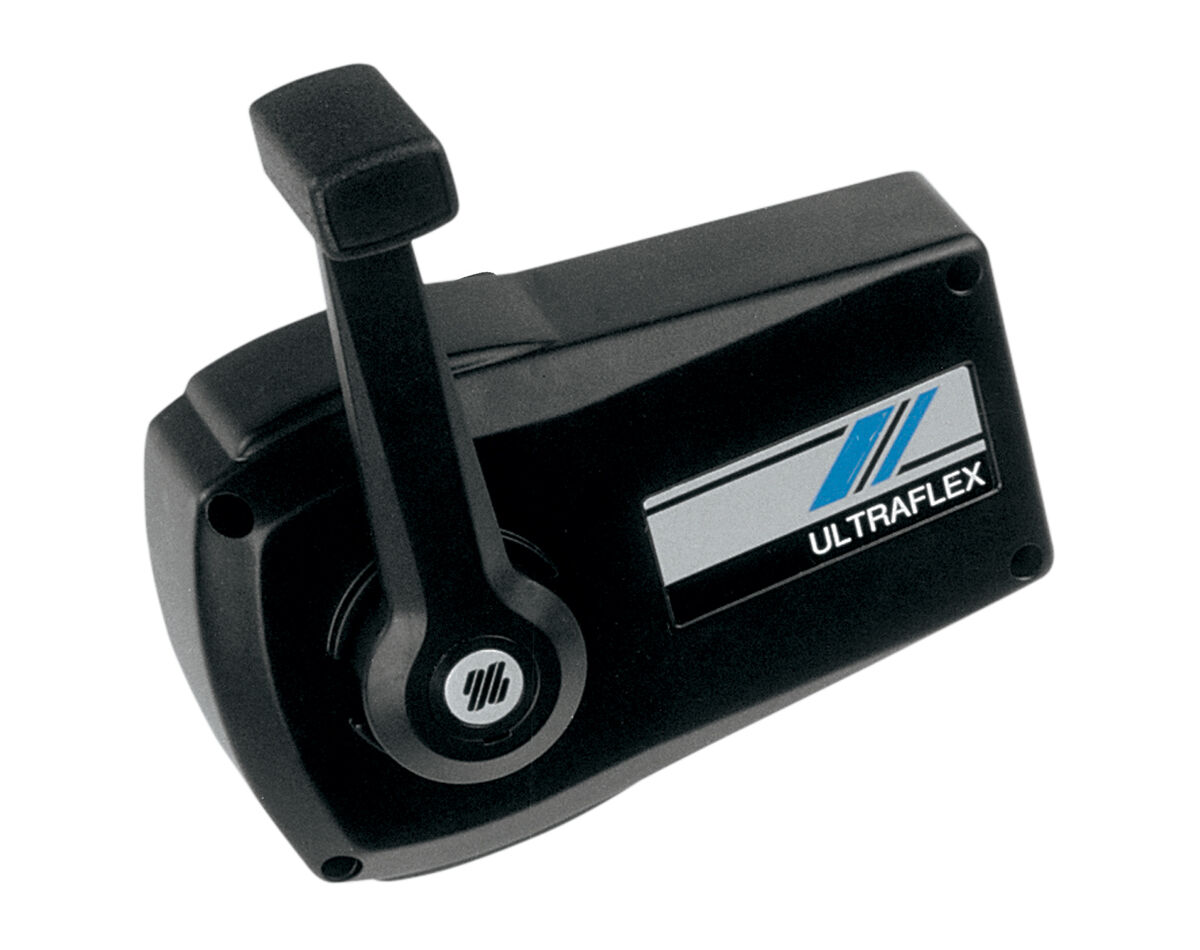

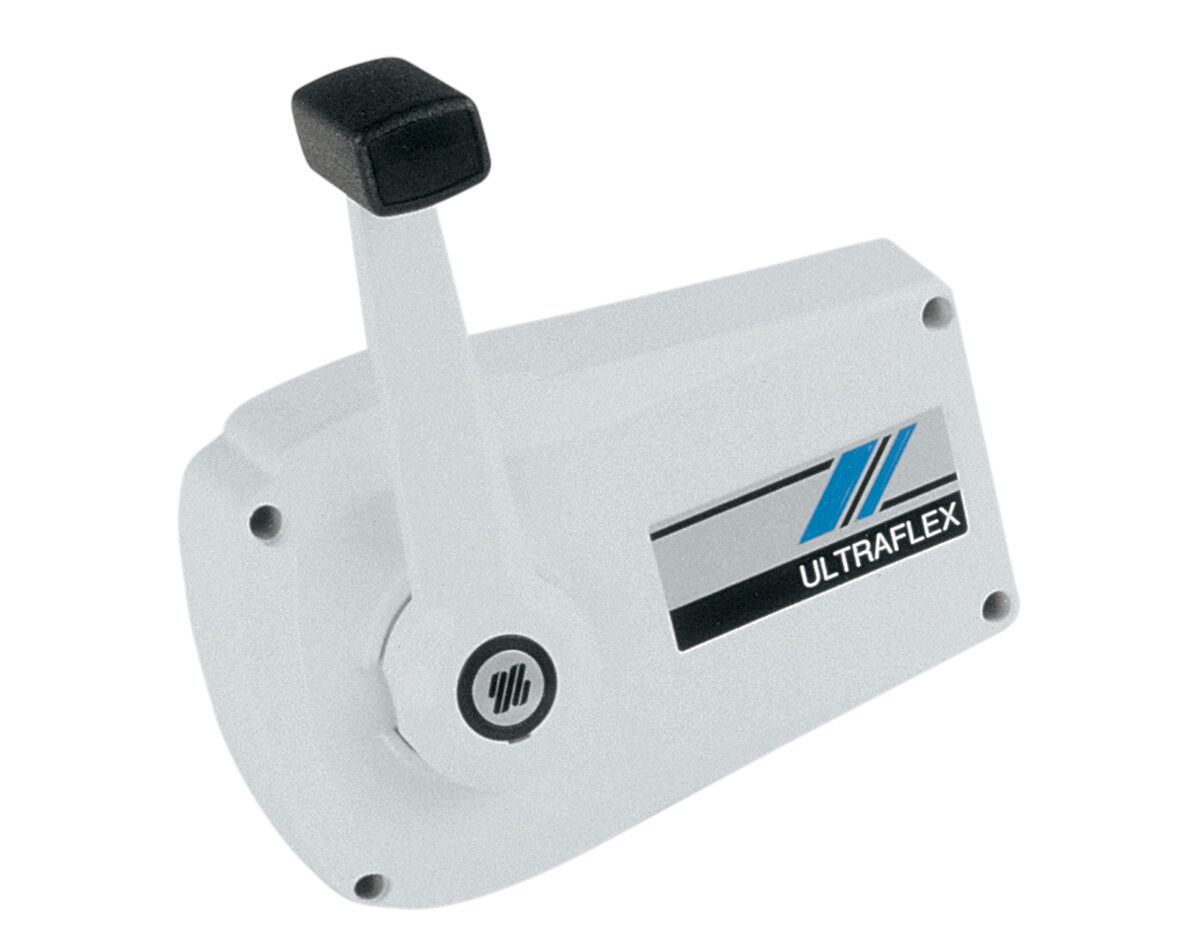

Ultraflex B89 & B90 Side Mount Engine Controls Single Lever

Single lever operates both throttle and shift.
Suitable for any type of boats with outboard, inboard or I/O power plants.
Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling.
Can be installed horizontally or vertically, on the starboard or port side of the boat.
Provided with a brake tension release system adjustable from outside.
Made of painted marine aluminium.

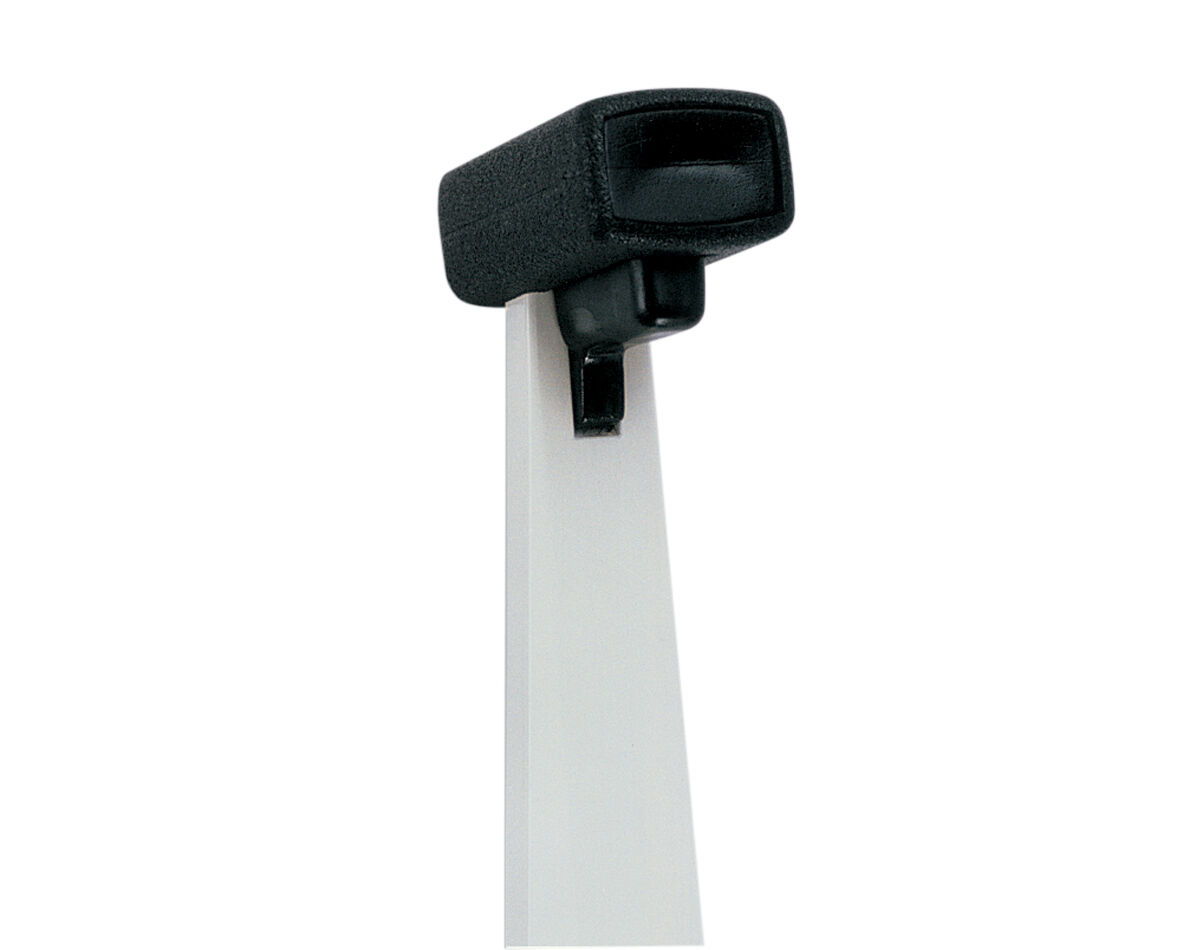

Pull-out handle disengages shift for engine warm up.
Neutral safety switch X12 (optional) prevents in-gear starting.
Exceeds EN ISO 11547 standards when X50 safety switch is installed.
Provided with a positive lock-in neutral to prevent accidental gear engagement.

For use with all Ultraflex engine control cables except C36 and MACH36.

Ultraflex C8 and MachZero cables require no connection kit.
Ultraflex C5, C16 and MACH5 cables require K35 U34730 connection kit.
Ultraflex C14 and MACH14 cables require K51 U32526 connection kit

Lever:	Single
Assembly:	Side Mount
Installation:	Horizontally or Vertically
Application:	Outboards, Sterndrives & Inboard
Colours:	Ivory (B89) or Black (B90)
Material:	Painted marine aluminium
Version:	Fully mechanical
Adjustable friction:	Not provided
Push in button (warm up):	Provided
Positive lock-in neutral:	Provided
Power trim switch:	Not provided
X12 Neutral Safety Switch:	Optional (sold seperately)
EN ISO 11547	Yes, when safety switch is installed
Control Cables:	C2, C8, MachZero
Control Cables: (require connection kit)	C5, C16, Mach5, C14, Mach14
