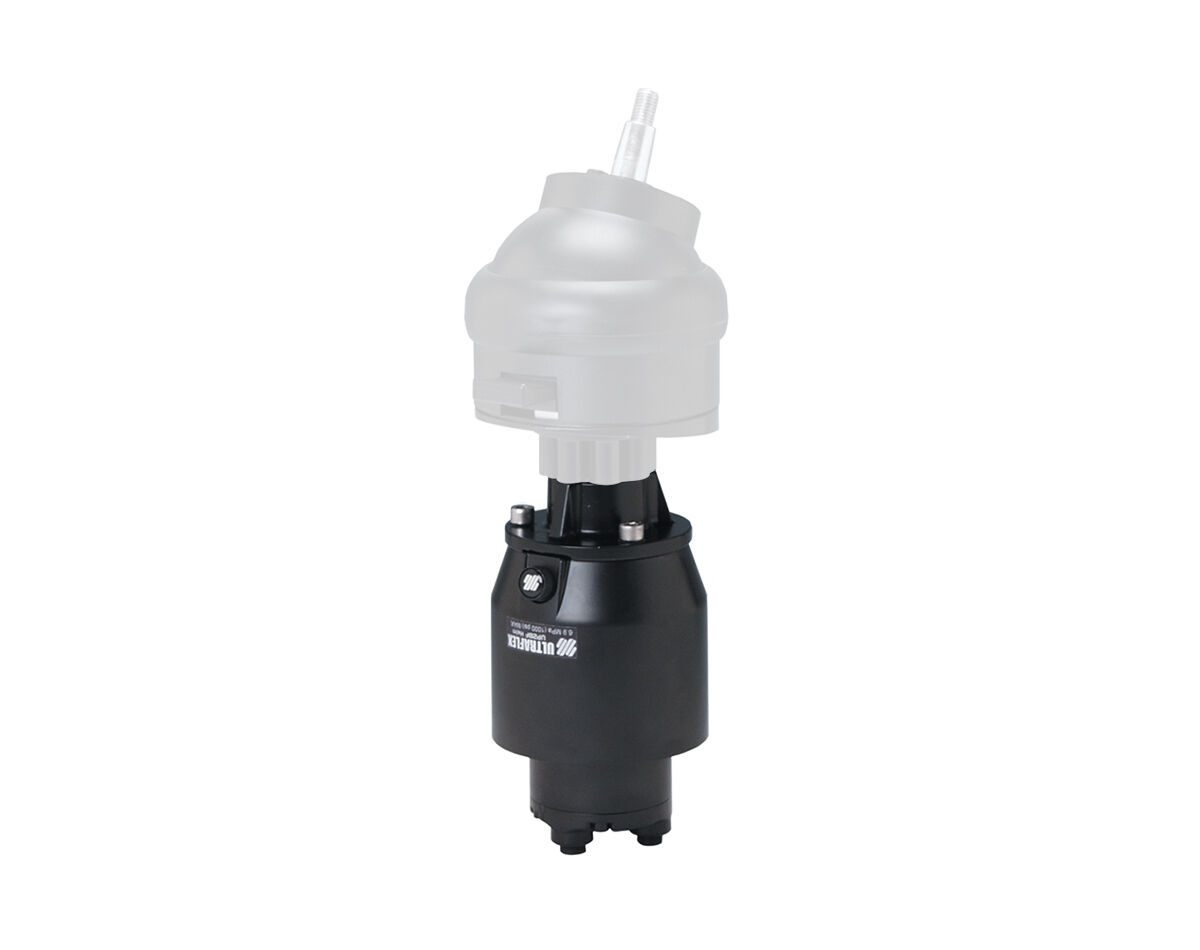

Ultraflex Hydraulic Steering Tilt Mount Helm Pumps

Compact design
Corrosion proof composite housing
Ball bearing piston race
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
Tapered stainless steel shaft
Easily accessible lock valve and shaft seal for replacement
Cast iron rotor for greater durability and longer life
Includes elbow fittings (for 3/8" tube)
UP45T helm pumps are ideal for dual cylinder, dual engine applications
Tilt mechanism X52 (U39250) provides tilt range of 48º and five locking positions - sold separately (see related products)
Kit "F" Remote Filler Kit Adaptor not included (optional but recommended).

Note: X52 tilt mechanism fits standard Ultraflex tilt mount rotary and rack and pinion steering helms as well as standard Ultraflex tilt mount hydraulic pumps. On high performance Silver Steer systems use X70-SVS tilt mechanism.

	UP25T	UP28T	UP33T	UP39T	UP45T
Displacement/Revolution	25cc - 1.5 cubic inch	28cc - 1.7 cubic inch	33cc - 2 cubic inch	39cc - 2.4 cubic inch	45cc - 2.7 cubic inch
No. Of Pistons	5	5	7	7	7
Relief Valve Setting	70 bar (1000psi)	70 bar (1000psi)	70 bar (1000psi)	70 bar (1000psi)	70 bar (1000psi)
Max Wheel Diameter	406mm (16")	406mm (16")	406mm (16")	406mm (16")	406mm (16")
Weight	5kg (11 lbs)	5kg (11 lbs)	5kg (11 lbs)	5kg (11 lbs)	5kg (11 lbs)
