Description

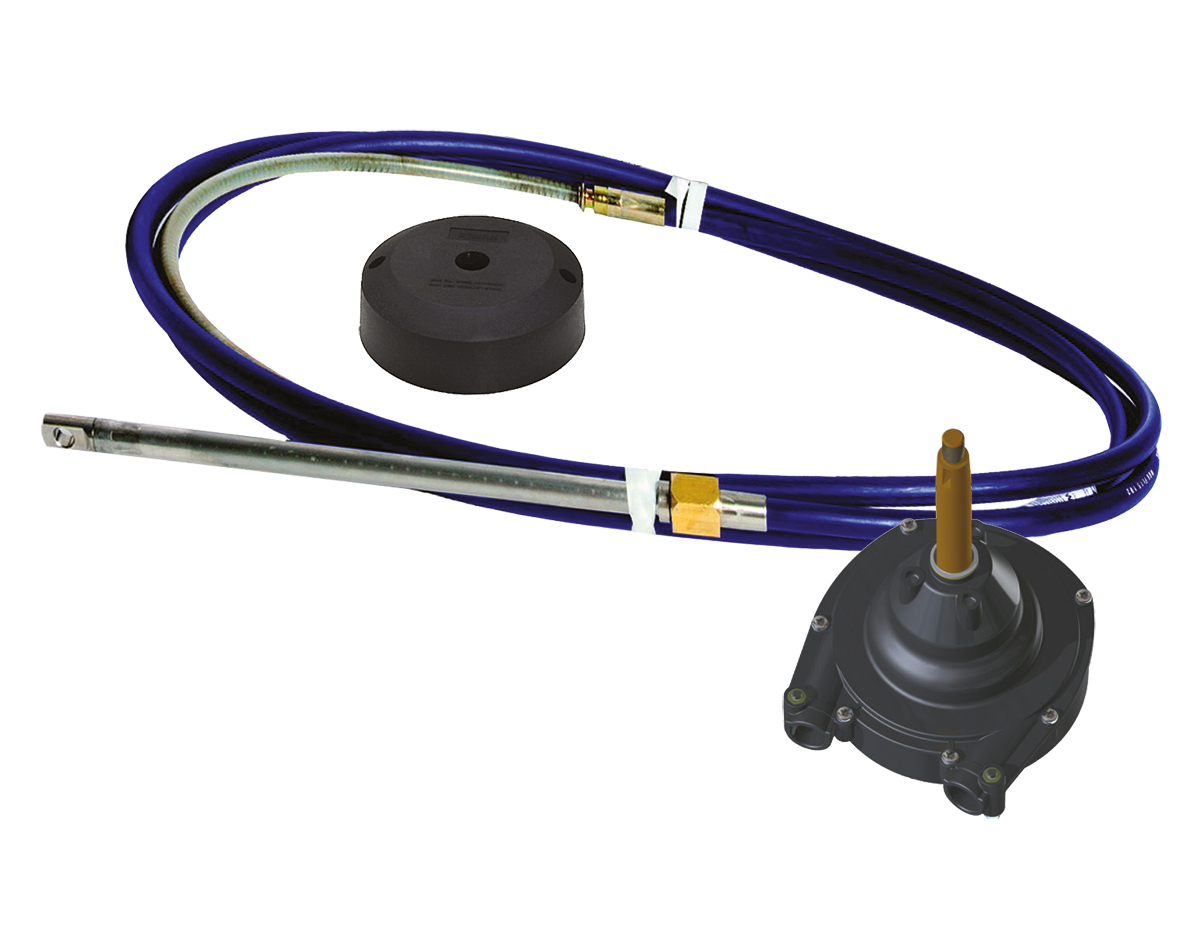

The Ultraflex T91 mechanical steering kits include a high performance helm, bezel and highly flexible M90 Mach cable. The cables range in lengths from 12ft to 21ft, for shorter lengths, please order individual parts separately.

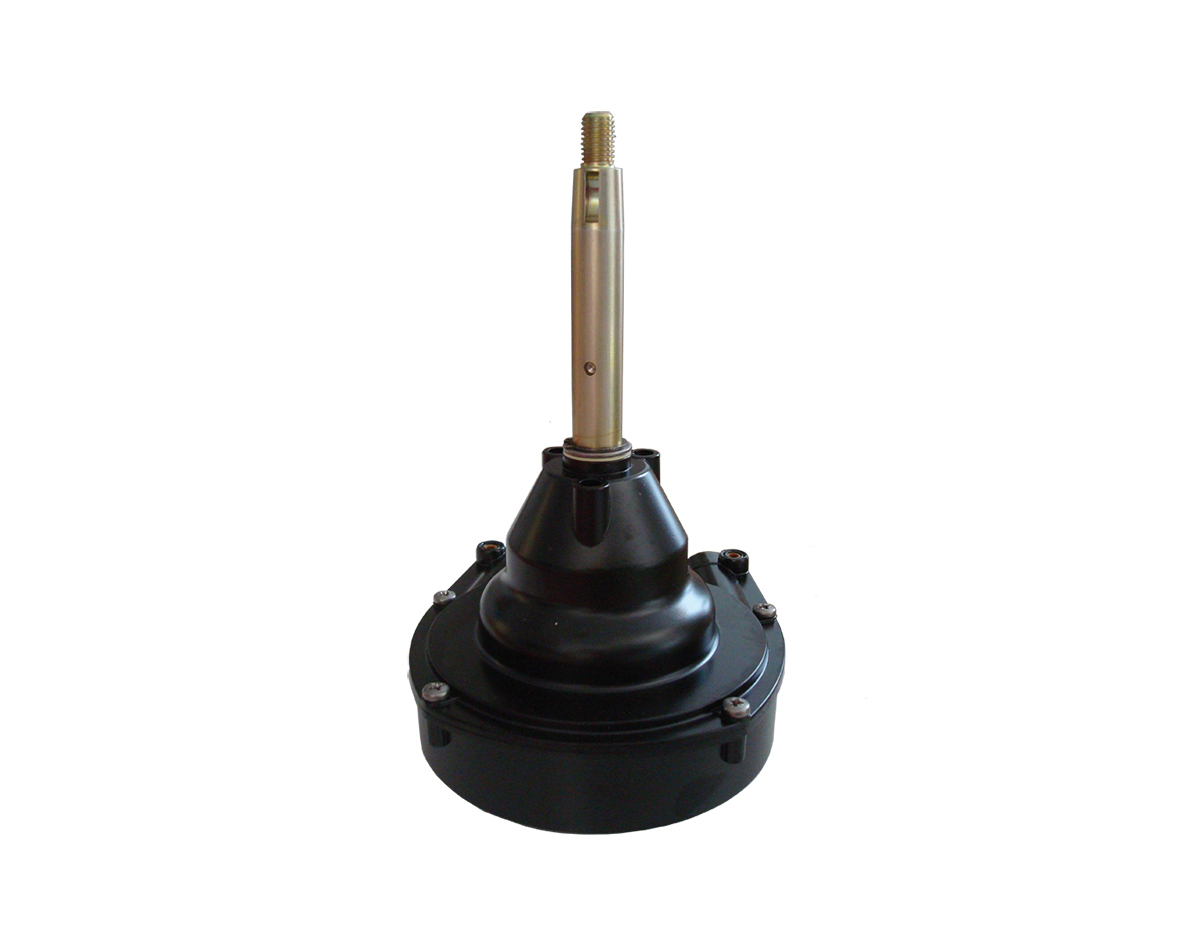

The T91 helm features a Planetary Gear design and is recommended for boats up to 9m (30 ft) in length.
These kits offer performance, flexibility and durability increased by top quality materials and construction. Centered on the main drive shaft, the helm requires less room behind the dash and is a direct “drop in” replacement for existing systems; requiring no new holes for installation.
Kit Includes:
- 1x M90 High Performance Steering Cable
- 1x T91 High Performance Planetary Gear Steering Helm

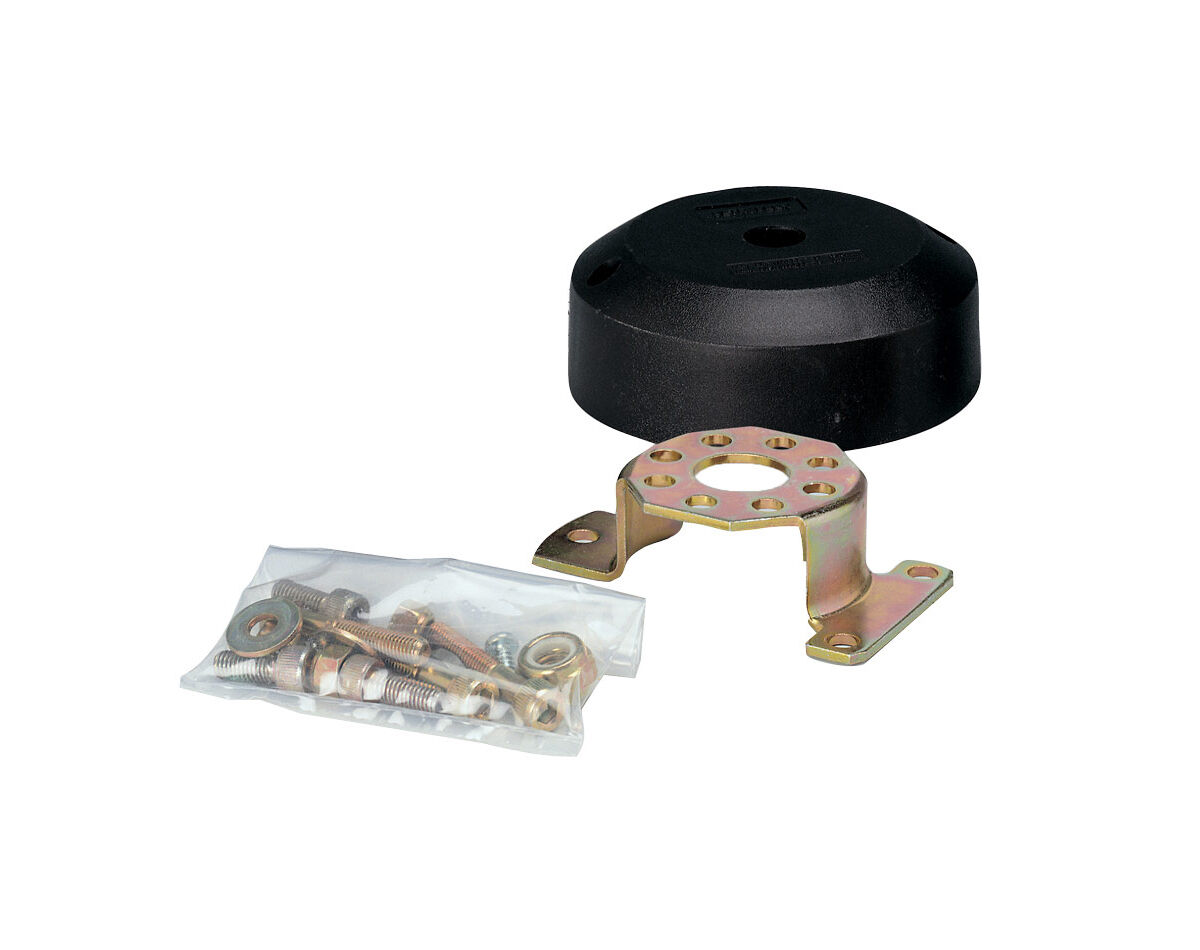

- 1x X34 Black Bezel Mount Kit 90deg
For steering wheels (sold separately) see our Steering Wheels category here.
Features:
- Specifically designed for high performance and high efficiency applications

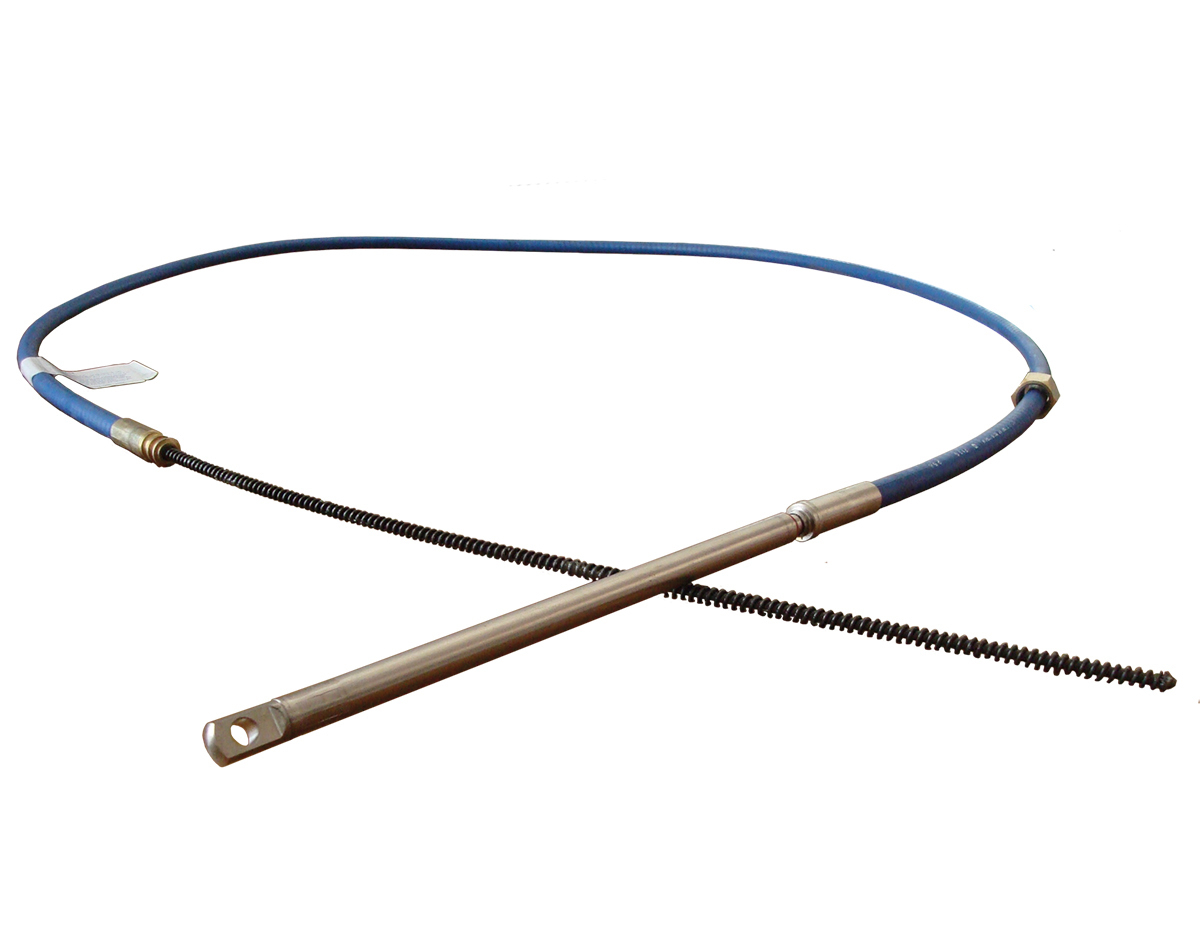

- M90 Mach cable (patented): performance, flexibility and durability increased by top quality materials and construction.
- M90 cable min. bend radius: 150mm
- Fast connect, simple installation, patented end fitting.
- Stainless steel cable output end featuring patented gasket, engine side
- Stroke length: 228mm
- T91 High Performance Planetary Gear Steering Helm
- Helm max. allowable steering wheel diameter: 406mm
- Standard 3/4” tapered shaft
- Corrosion resistant materials
- Minimal feedback
- T91 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 80 kph or 43knots suggest to use our hydraulic steering systems
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
Enquiry Form
Ultraflex Mechanical Steering Kit M90 Cable with T91 Planetary Gear Helm
Enquiry Form
Specifications
| SKU | JPW-P-JPW18762 |
| Brand | Ultraflex |
