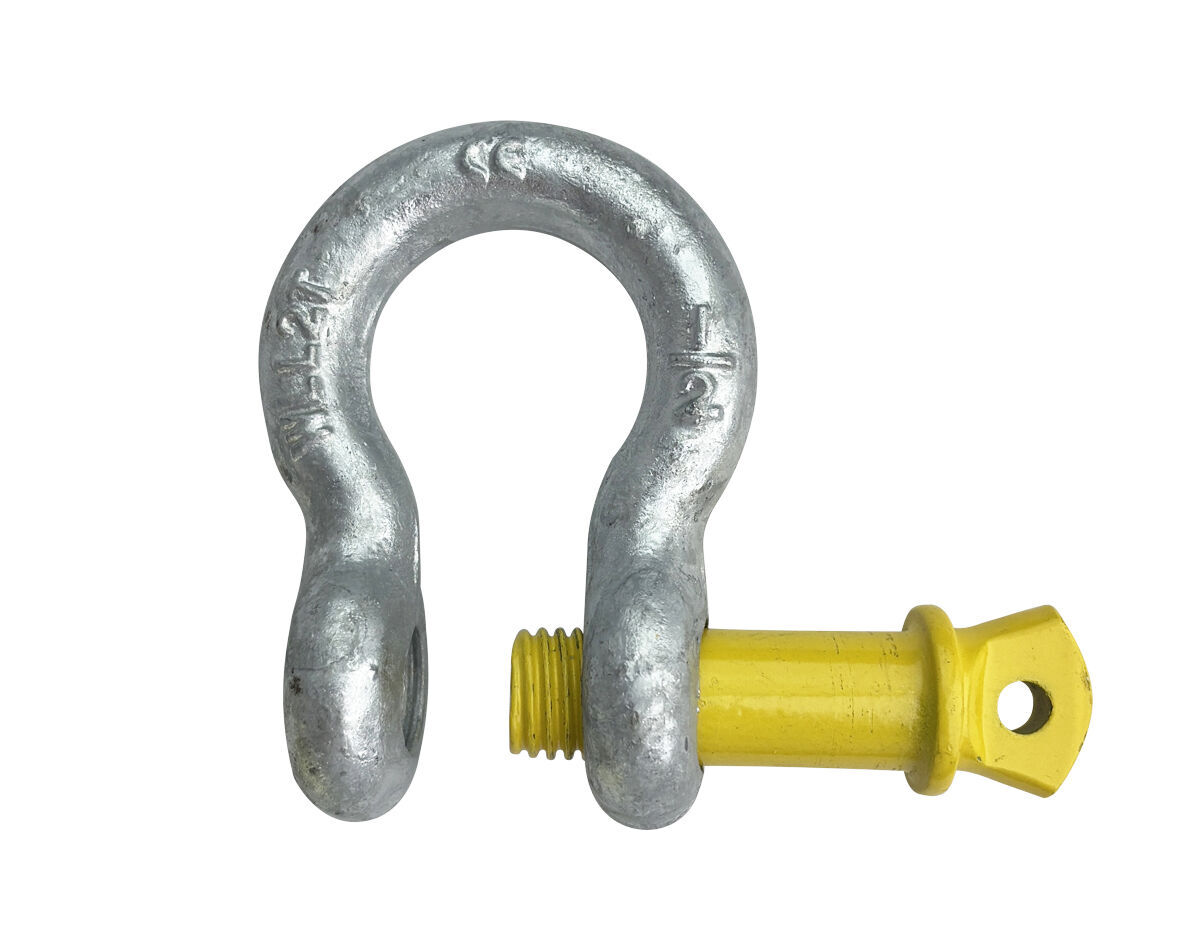

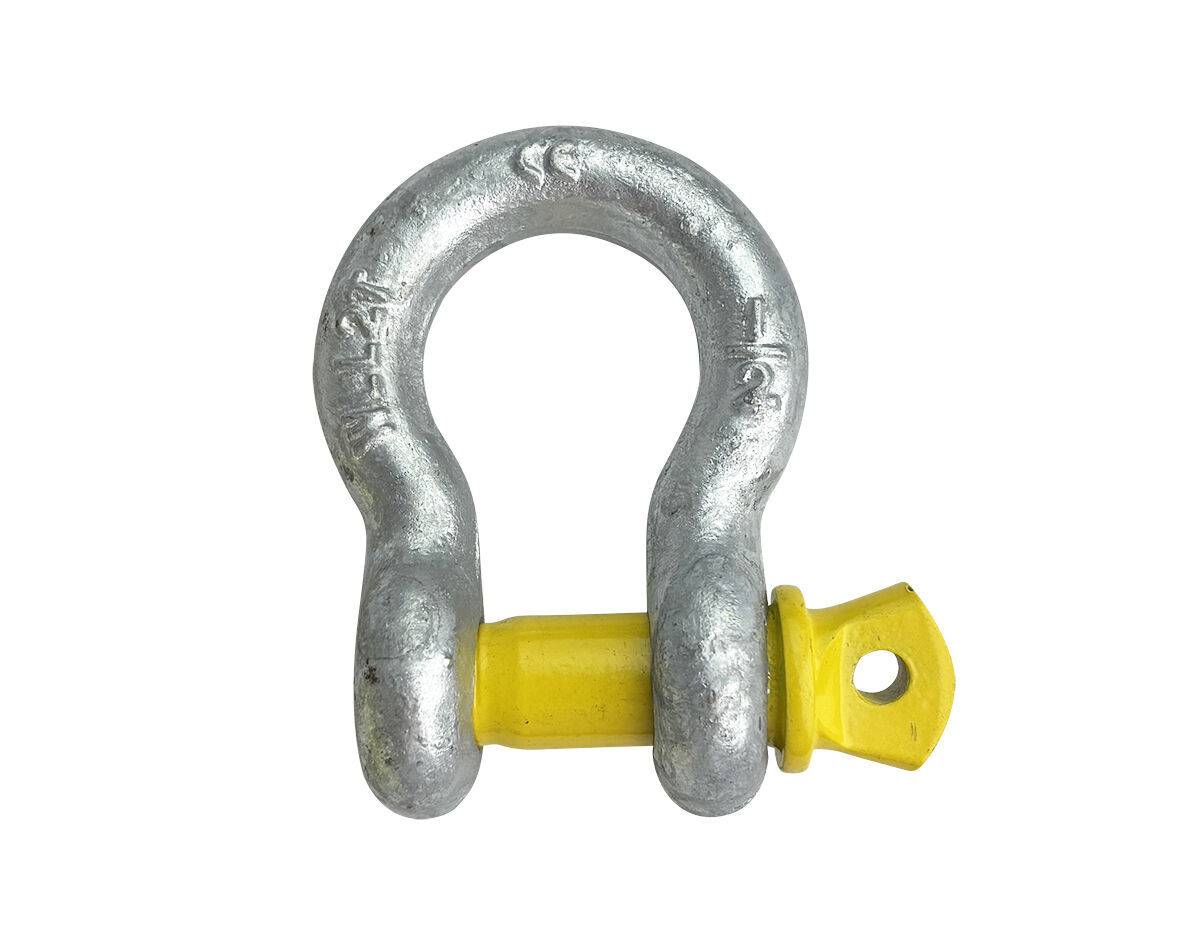

Write A ReviewBow Shackle made from galvanised steel with painted yellow pin to indicated it has been load rated.
*S.W.L (suggested working load) is approx 25% of ultimate breaking load
Note: Dimensions above are hand measured and are approximates.

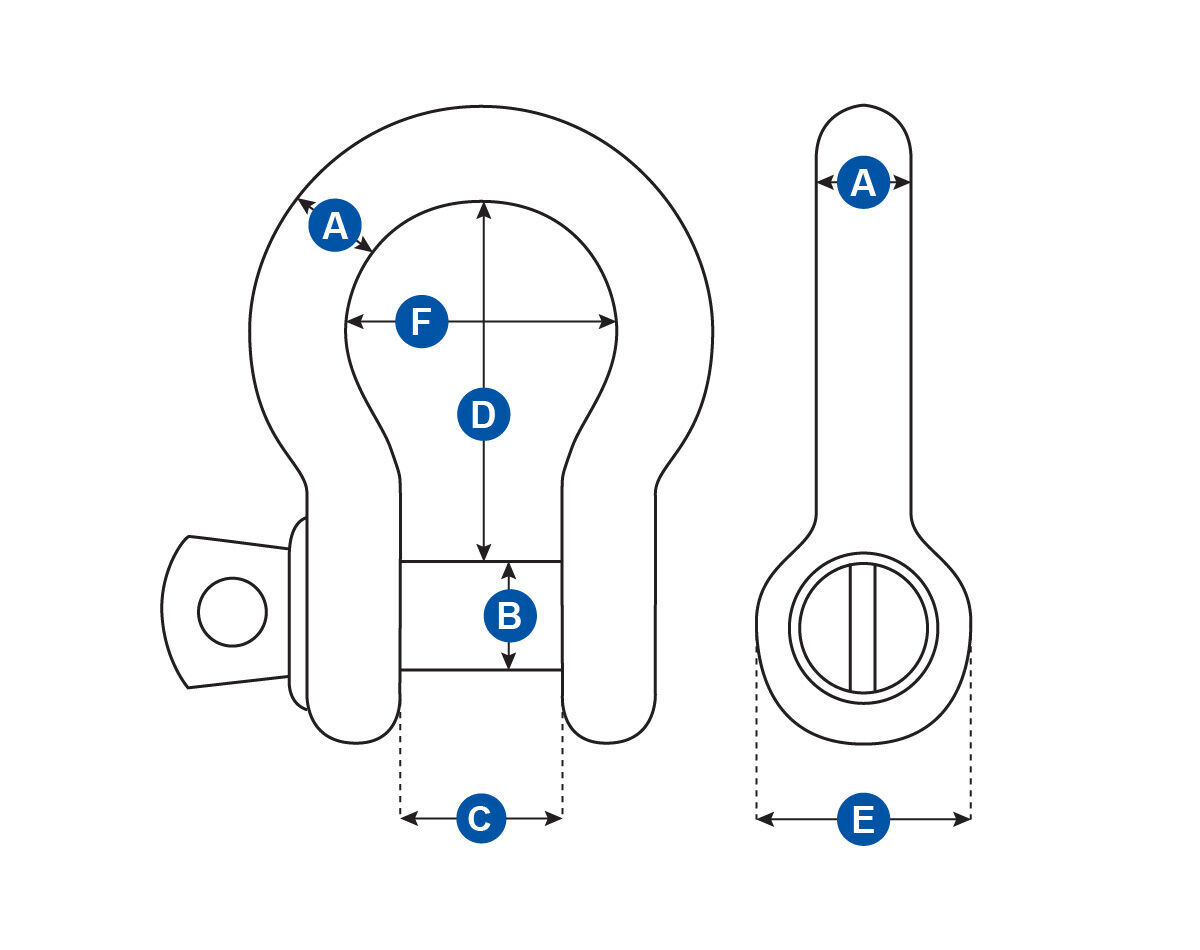

| JPW SKU | Shackle Size | Dimensions (mm) - see diagram within images | S.W.L | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||
| JPW6736 | 6mm | 8 | 8 | 11 | 28 | 18 | 19 | 500kg |
| JPW6737 | 8mm | 8 | 10 | 12 | 29 | 22 | 21 | 750kg |
| JPW6738 | 10mm | 10 | 11 | 15 | 35 | 25 | 25 | 1000kg |
| JPW6739 | 13mm | 14 | 16 | 19 | 46 | 32 | 32 | 2000kg |
| JPW6740 | 16mm | 16 | 19 | 26 | 60 | 39 | 42 | 3250kg |
| JPW6741 | 19mm | 21 | 23 | 32 | 71 | 47 | 50 | 4750kg |
