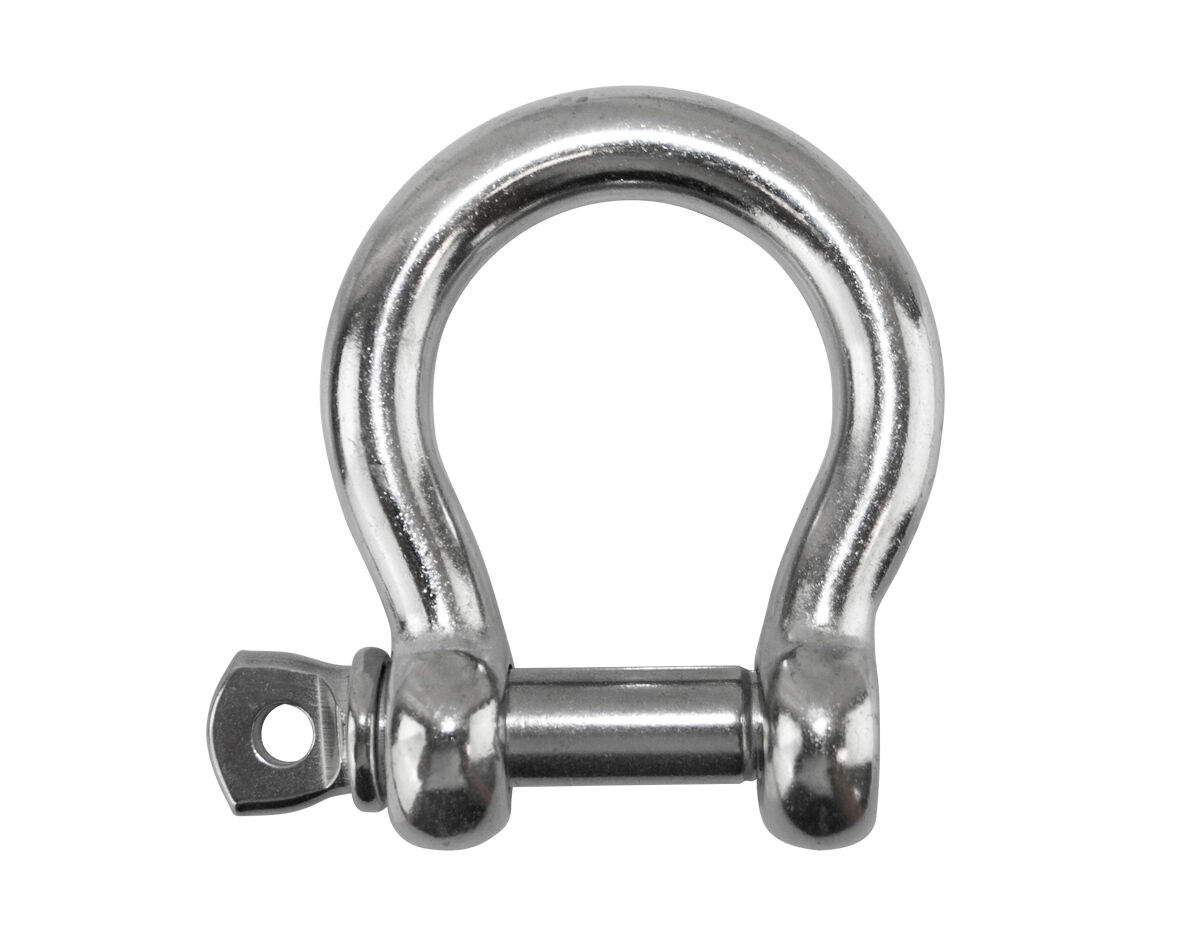

Write A Review316-grade stainless steel bow shackles.
Screw collar pin drilled with hole for security tie wire.

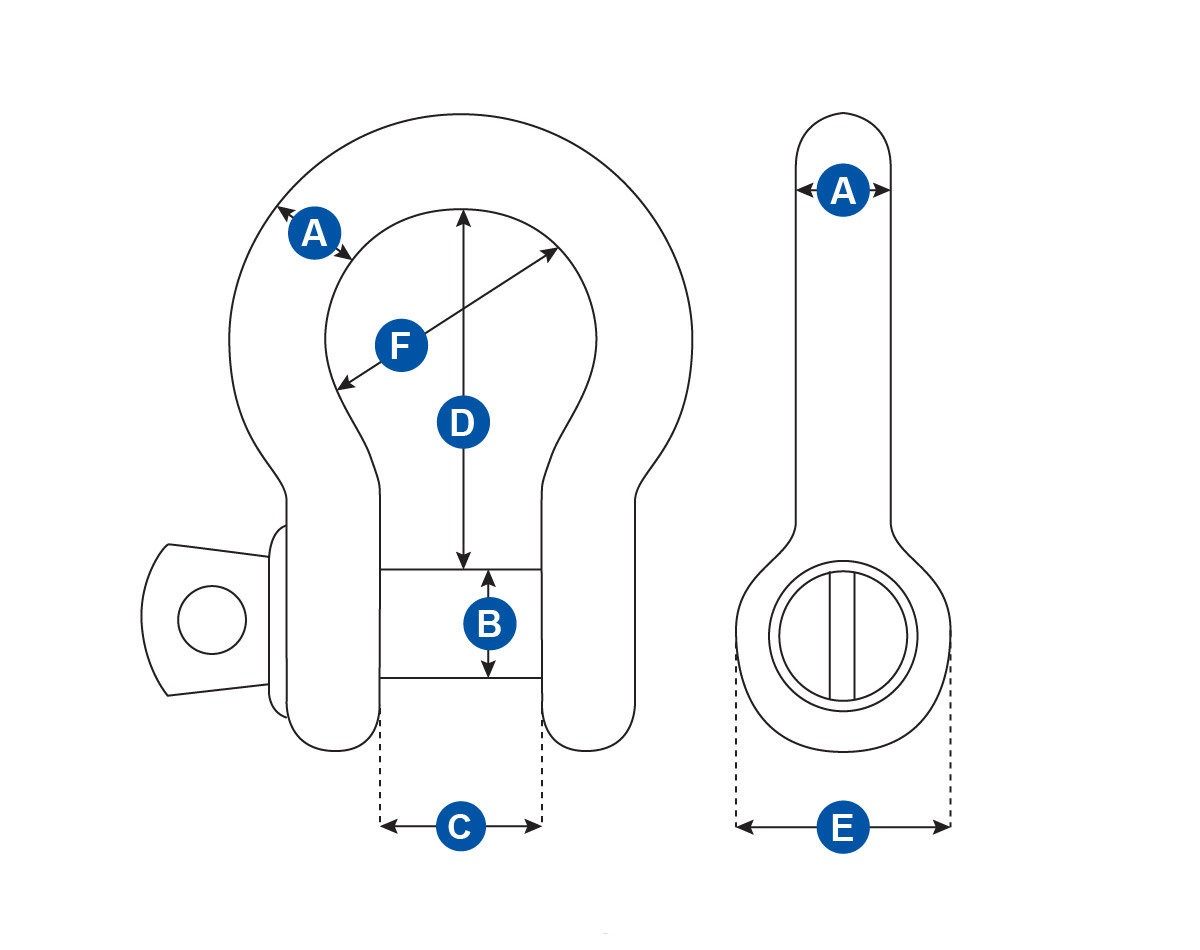

| JPW SKU | Shackle Size | øA (mm) | øB (mm) | C (mm) | D (mm) | E (mm) | F (mm) | S.W.L* (kg) |
|---|---|---|---|---|---|---|---|---|
| JPW4882 | 5mm | 5 | 5 | 10 | 19 | 10 | 15 | 250 |
| JPW4883 | 6mm | 6 | 6 | 12 | 24 | 12 | 18 | 375 |
| JPW4884 | 8mm | 8 | 8 | 16 | 32 | 16 | 24 | 625 |
| JPW4885 | 10mm | 10 | 10 | 22 | 40 | 20 | 30 | 1000 |
| JPW4886 | 12mm | 12 | 12 | 25 | 45 | 24 | 38 | 1600 |
| JPW4887 | 16mm | 16 | 16 | 32 | 64 | 56 | 1750 | |
| JPW4888 | 20mm | 20 | 20 | 38 | 76 | 41 | 66 | 1900 |
| JPW4889 | 25mm | 25 | 25 | 50 | 102 | 48 | 87 | 2200 |
* S.W.L (suggested working load) is approx 25% of breaking load.
| SKU | JPW-P-JPW4882 |
| Brand | JPW Marine |
